Results
Results
Title:
Short description:
area light, red, diffuse, lf-size: 180x120 mm, flashable by flash controller
Order number:
1-15-729
EAN:
4251692654781
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 180 mm x 120 mm |
| Light design | Diffuse |
| Light colour (typ.) | Red, 633 nm |
| Special feature | Flashable with flash controller |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 1,060 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 150 mm (without M12 connector) |
| Cable diameter | 9.7 mm |
| Cable structure | 4 x 1.5 mm² |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, green, diffuse, lf-size: 180x120 mm, controlled
Order number:
1-15-752
EAN:
4251692654941
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 180 mm x 120 mm |
| Light design | Diffus |
| Light colour (typ.) | Green, 525 nm |
| Operating mode | Switchable continuous operation Pulse operation (1 µs - ∞) |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 1 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 22 W (950 mA at 24 VDC) |
| Radiance | 8.2 W/(m²sr) |
| Luminance | 4,080 cd/m² |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 1,100 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 6-core
Title:
Short description:
area light, blue, diffuse, lf-size: 180x120 mm, controlled
Order number:
1-15-754
EAN:
4251692654958
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 180 mm x 120 mm |
| Light design | Diffus |
| Light colour (typ.) | Blau, 470 nm |
| Operating mode | Switchable continuous operation Pulse operation (1 µs - ∞) |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 1 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 22 W (950 mA at 24 VDC) |
| Radiance | 19.4 W/(m²sr) |
| Luminance | 1,020 cd/m² |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 1,100 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 6-core
Title:
Short description:
area light, white, diffuse, lf-size: 180x120 mm, controlled
Order number:
1-15-756
EAN:
4251692655191
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 180 mm x 120 mm |
| Light design | Diffus |
| Light colour (typ.) | White, 5700 K |
| Operating mode | Switchable continuous operation Pulse operation (1 µs - ∞) |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 1 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 22 W (950 mA at 24 VDC) |
| Radiance | 30,3 W/(m²sr) |
| Luminance | 10,100 cd/m² |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 1,100 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 6-core
Title:
Short description:
area light, IR850, diffuse, lf-size: 180x120 mm, controlled
Order number:
1-15-769
EAN:
4251692655207
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 180 mm x 120 mm |
| Light design | Diffus |
| Light colour (typ.) | Infrared, 850 nm |
| Operating mode | Switchable continuous operation Pulse operation (1 µs - ∞) |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 1 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 22 W (950 mA at 24 VDC) |
| Radiance | 40 W/(m²sr) |
| Luminance | - |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 1,100 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 6-core
Title:
Short description:
area light, red, diffuse, lf-size: 180x120 mm, controlled
Order number:
1-15-750
EAN:
4251692654934
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 180 mm x 120 mm |
| Light design | Diffus |
| Light colour (typ.) | Red, 633 nm |
| Operating mode | Switchable continuous operation Pulse operation (1 µs - ∞) |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 1 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (14 - 30 V) |
| Power consumption | max. 22 W (950 mA at 24 VDC) |
| Radiance | 26.6 W/(m²sr) |
| Luminance | 3,330 cd/m² |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 1,100 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 6-core
Title:
Short description:
area light, blue, diffuse, lf-size: 240x180 mm, flashable by flash controller
Order number:
1-15-742
EAN:
4251692654897
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Diffuse |
| Light colour (typ.) | Blue, 470 nm |
| Special feature | Flashable with flash controller |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,000 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 150 mm (without M12 connector) |
| Cable diameter | 9.7 mm |
| Cable structure | 4 x 1.5 mm² |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings

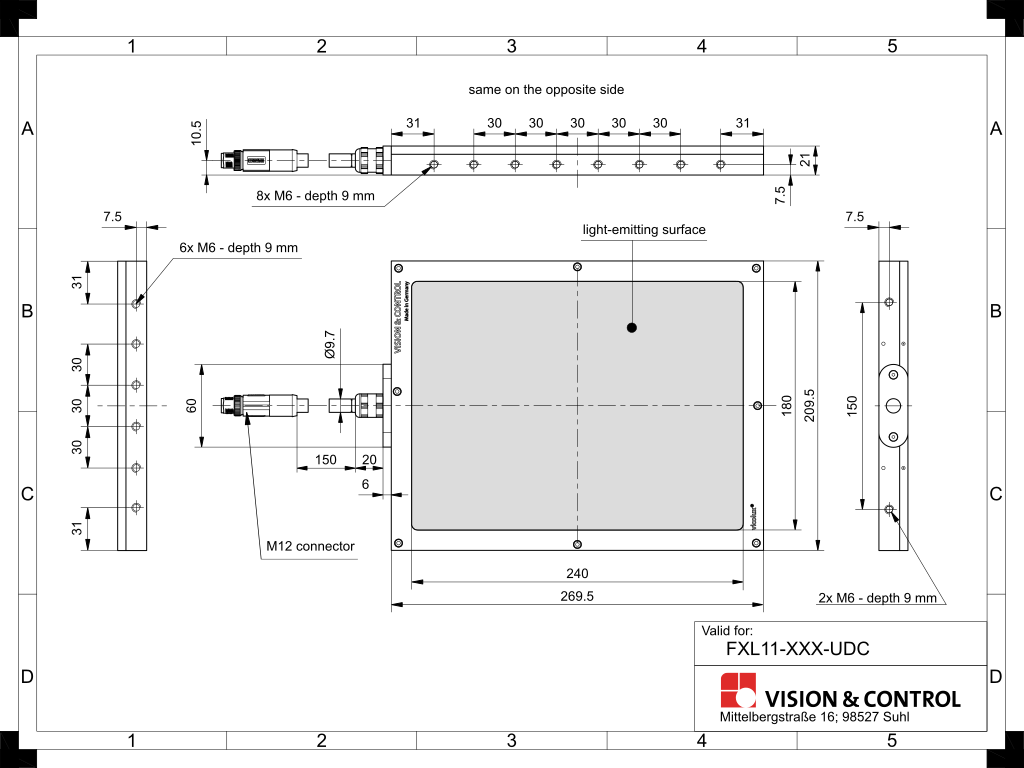

Dimensional drawing in mm
Pin assignment M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, white, diffuse, lf-size: 240x180 mm, flashable by flash controller
Order number:
1-15-743
EAN:
4251692654903
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Diffuse |
| Light colour (typ.) | White, 5700 K |
| Special feature | Flashable with flash controller |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,000 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 150 mm (without M12 connector) |
| Cable diameter | 9.7 mm |
| Cable structure | 4 x 1.5 mm² |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, IR850, diffuse, lf-size: 240x180 mm, flashable by flash controller
Order number:
1-15-744
EAN:
4251692654910
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Diffuse |
| Light colour (typ.) | Infrared, 850 nm |
| Special feature | Flashable with flash controller |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,000 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 150 mm (without M12 connector) |
| Cable diameter | 9.7 mm |
| Cable structure | 4 x 1.5 mm² |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, red, diffuse, lf-size: 240x180 mm, flashable by flash controller
Order number:
1-15-741
EAN:
4251692654880
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Diffuse |
| Light colour (typ.) | Red, 633 nm |
| Special feature | Flashable with flash controller |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,000 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 150 mm (without M12 connector) |
| Cable diameter | 9.7 mm |
| Cable structure | 4 x 1.5 mm² |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, blue, diffuse, lf-size: 240x180 mm, static
Order number:
1-15-854
EAN:
4251692655313
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Diffus |
| Light colour (typ.) | Blau, 470 nm |
| Operating mode | Switchable continuous operation |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 3 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 53 W (2.2 A at 24 VDC) |
| Radiance | 12.3 W/(m²sr) |
| Luminance | 647 cd/m² |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,400 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings

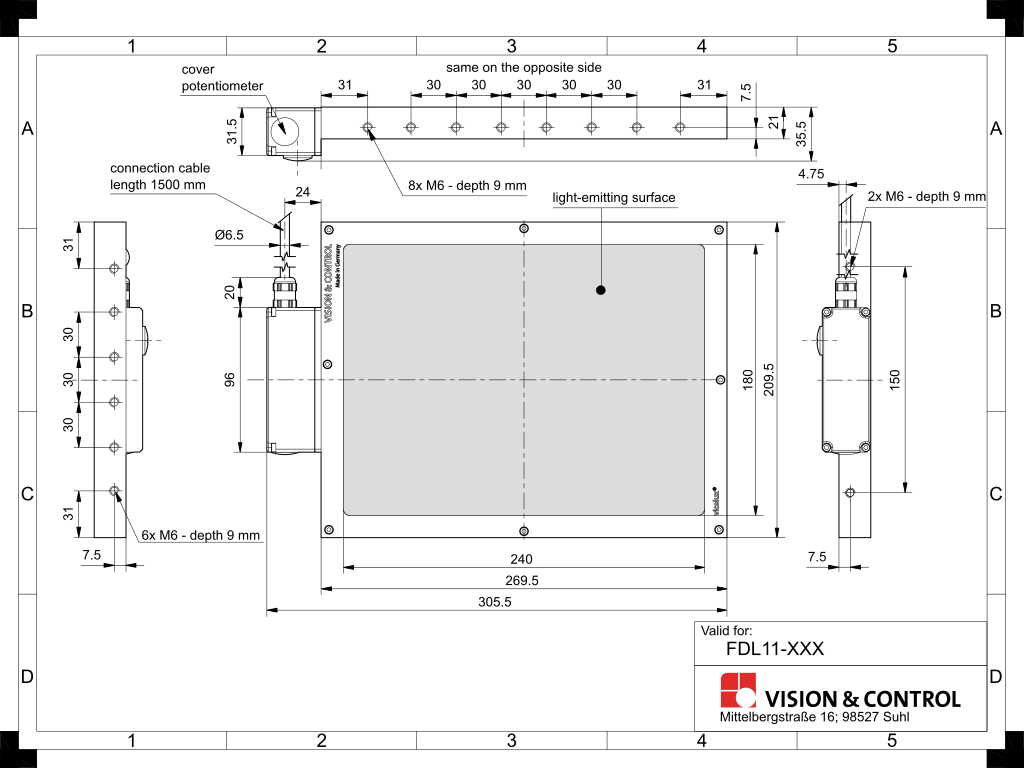

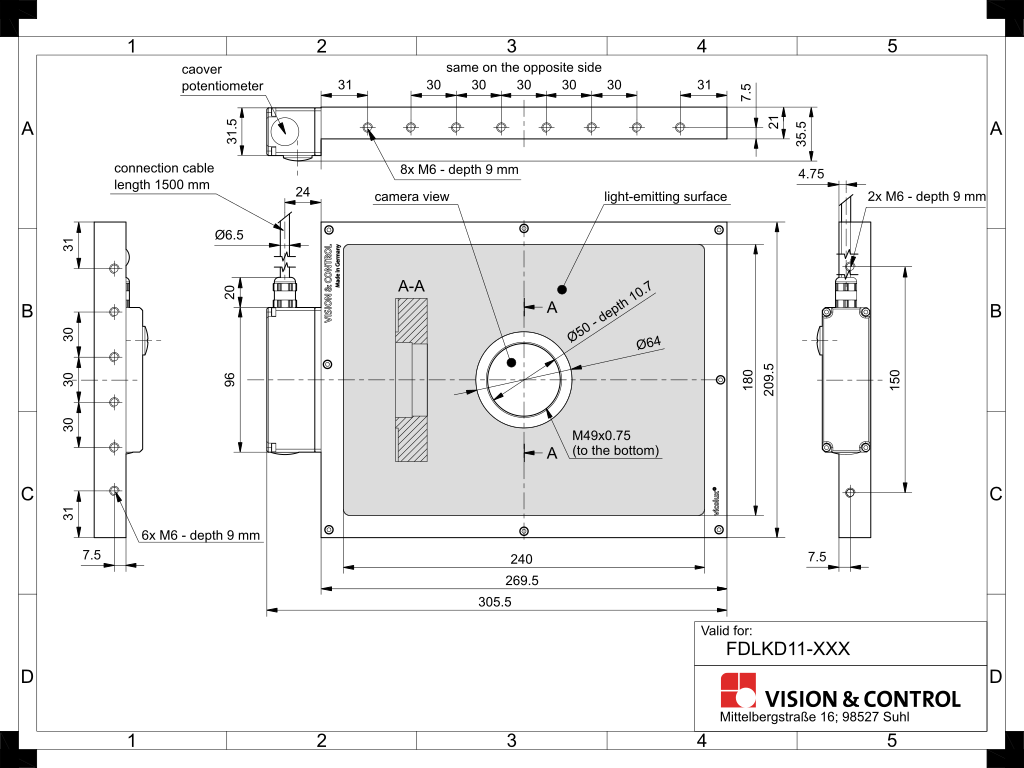

Dimensional drawing in mm
Pin assignment: cable open, 4-core
Title:
Short description:
area light, white, diffuse, lf-size: 240x180 mm, static
Order number:
1-15-856
EAN:
4251692655320
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Diffus |
| Light colour (typ.) | White, 5700 K |
| Operating mode | Switchable continuous operation |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 3 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 53 W (2.2 A at 24 VDC) |
| Radiance | 18.9 W/(m²sr) |
| Luminance | 6,300 cd/m² |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,400 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 4-core
Title:
Short description:
area light, IR850, diffuse, lf-size: 240x180 mm, static
Order number:
1-15-862
EAN:
4251692655337
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Diffus |
| Light colour (typ.) | Infrared, 850 nm |
| Operating mode | Switchable continuous operation |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 3 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 53 W (2.2 A at 24 VDC) |
| Radiance | 25 W/(m²sr) |
| Luminance | - |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,400 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 4-core
Title:
Short description:
area light, red, diffuse, lf-size: 240x180 mm, static
Order number:
1-15-850
EAN:
4251692655306
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Diffus |
| Light colour (typ.) | Red, 633 nm |
| Operating mode | Switchable continuous operation |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 3 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 53 W (2.2 A at 24 VDC) |
| Radiance | 16.8 W/(m²sr) |
| Luminance | 2,100 cd/m² |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,400 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 4-core
Title:
Short description:
area light, blue, diffuse, lf-size: 240x180 mm, camera view, static
Order number:
1-15-870
EAN:
4251692655351
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- metal casing, optical material: PMMA
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Diffus |
| Light colour (typ.) | Blau, 470 nm |
| Operating mode | Switchable continuous operation |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 3 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 35 W (1.4 A at 24 VDC) |
| Radiance | 11.3 W/m²sr |
| Luminance | 590 cd/m² |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,400 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 4-core
Load more products..
