Title:
Short description:
area light, white, diffuse, lf-size: 60x90 mm, controlled
Order number:
1-15-556
EAN:
4251692654415
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 90 mm x 60 mm |
| Light design | Diffus |
| Light colour (typ.) | White, 5700 K |
| Operating mode | Switchable continuous operation Pulse operation (1 µs - ∞) |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 1 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 10 W (420 mA at 24 VDC) |
| Radiance | 37.5 W/(m²sr) |
| Luminance | 12,500 cd/m² |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 620 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 6-core
Title:
Short description:
area light, IR850, diffuse, lf-size: 60x90 mm, controlled
Order number:
1-15-566
EAN:
4251692654422
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 90 mm x 60 mm |
| Light design | Diffus |
| Light colour (typ.) | Infrared, 850 nm |
| Operating mode | Switchable continuous operation Pulse operation (1 µs - ∞) |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 1 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 10 W (420 mA at 24 VDC) |
| Radiance | 116 W/(m²sr) |
| Luminance | - |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 620 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 6-core
Title:
Short description:
area light, red, diffuse, lf-size: 60x90 mm, controlled
Order number:
1-15-550
EAN:
4251692654385
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 90 mm x 60 mm |
| Light design | Diffus |
| Light colour (typ.) | Red, 633 nm |
| Operating mode | Switchable continuous operation Pulse operation (1 µs - ∞) |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 1 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (14 - 30 V) |
| Power consumption | max. 10 W (420 mA at 24 VDC) |
| Radiance | 33 W/(m²sr) |
| Luminance | 4,130 cd/m² |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 620 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 6-core
Title:
Short description:
area light, blue, diffuse, lf-size: 120x90 mm, flashable by flash controller
Order number:
1-15-671
EAN:
4251692654644
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 120 mm x 90 mm |
| Light design | Diffuse |
| Light colour (typ.) | Blue, 470 nm |
| Special feature | Flashable with flash controller |
| Radiance | |
| • Continuous operation | 10 W/(m²sr) |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 680 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 150 mm (without M8 connector) |
| Cable diameter | 5 mm |
| Cable structure | 4 x 0.25 mm² |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, white, diffuse, lf-size: 120x90 mm, flashable by flash controller
Order number:
1-15-672
EAN:
4251692654651
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 120 mm x 90 mm |
| Light design | Diffuse |
| Light colour (typ.) | White, 5700 K |
| Special feature | Flashable with flash controller |
| Radiance | |
| • Continuous operation | 30 W/(m²sr) |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 680 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 150 mm (without M8 connector) |
| Cable diameter | 5 mm |
| Cable structure | 4 x 0.25 mm² |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, IR850, diffuse, lf-size: 120x90 mm, flashable by flash controller
Order number:
1-15-673
EAN:
4251692654668
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 120 mm x 90 mm |
| Light design | Diffuse |
| Light colour (typ.) | Infrared, 850 nm |
| Special feature | Flashable with flash controller |
| Radiance | |
| • Continuous operation | 40 W/(m²sr) |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 680 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 150 mm (without M8 connector) |
| Cable diameter | 5 mm |
| Cable structure | 4 x 0.25 mm² |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, red, diffuse, lf-size: 120x90 mm, flashable by flash controller
Order number:
1-15-670
EAN:
4251692654637
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 120 mm x 90 mm |
| Light design | Diffuse |
| Light colour (typ.) | Red, 633 nm |
| Special feature | Flashable with flash controller |
| Radiance | |
| • Continuous operation | 30 W/(m²sr) |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 680 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 150 mm (without M8 connector) |
| Cable diameter | 5 mm |
| Cable structure | 4 x 0.25 mm² |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, green, diffuse, lf-size: 120x90 mm, controlled
Order number:
1-15-652
EAN:
4251692654590
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 120 mm x 90 mm |
| Light design | Diffus |
| Light colour (typ.) | Green, 525 nm |
| Operating mode | Switchable continuous operation Pulse operation (1 µs - ∞) |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 1 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 15 W (630 mA at 24 VDC) |
| Radiance | 10.9 W/(m²sr) |
| Luminance | 4,540 cd/m² |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 840 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 6-core
Title:
Short description:
area light, blue, diffuse, lf-size: 120x90 mm, controlled
Order number:
1-15-654
EAN:
4251692654606
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 120 mm x 90 mm |
| Light design | Diffus |
| Light colour (typ.) | Blau, 470 nm |
| Operating mode | Switchable continuous operation Pulse operation (1 µs - ∞) |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 1 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 15 W (630 mA at 24 VDC) |
| Radiance | 21 W/(m²sr) |
| Luminance | 1,100 cd/m² |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 840 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 6-core
Title:
Short description:
area light, white, diffuse, lf-size: 120x90 mm, controlled
Order number:
1-15-656
EAN:
4251692654613
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 120 mm x 90 mm |
| Light design | Diffus |
| Light colour (typ.) | White, 5700 K |
| Operating mode | Switchable continuous operation Pulse operation (1 µs - ∞) |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 1 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 15 W (630 mA at 24 VDC) |
| Radiance | 33,6 W/(m²sr) |
| Luminance | 11,200 cd/m² |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 840 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 6-core
Title:
Short description:
area light, IR850, diffuse, lf-size: 120x90 mm, controlled
Order number:
1-15-666
EAN:
4251692654620
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 120 mm x 90 mm |
| Light design | Diffus |
| Light colour (typ.) | Infrared, 850 nm |
| Operating mode | Switchable continuous operation Pulse operation (1 µs - ∞) |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 1 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 15 W (630 mA at 24 VDC) |
| Radiance | 41 W/(m²sr) |
| Luminance | - |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 840 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 6-core
Title:
Short description:
area light, red, diffuse, lf-size: 120x90 mm, controlled
Order number:
1-15-650
EAN:
4251692654583
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 120 mm x 90 mm |
| Light design | Diffus |
| Light colour (typ.) | Red, 633 nm |
| Operating mode | Switchable continuous operation Pulse operation (1 µs - ∞) |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 1 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (14 - 30 V) |
| Power consumption | max. 15 W (630 mA at 24 VDC) |
| Radiance | 29 W/(m²sr) |
| Luminance | 3,800 cd/m² |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 840 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 6-core
Title:
Short description:
area light, blue, diffuse, lf-size: 180x120 mm, flashable by flash controller
Order number:
1-15-730
EAN:
4251692654798
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 180 mm x 120 mm |
| Light design | Diffuse |
| Light colour (typ.) | Blue, 470 nm |
| Special feature | Flashable with flash controller |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 1,060 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 150 mm (without M12 connector) |
| Cable diameter | 9.7 mm |
| Cable structure | 4 x 1.5 mm² |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings

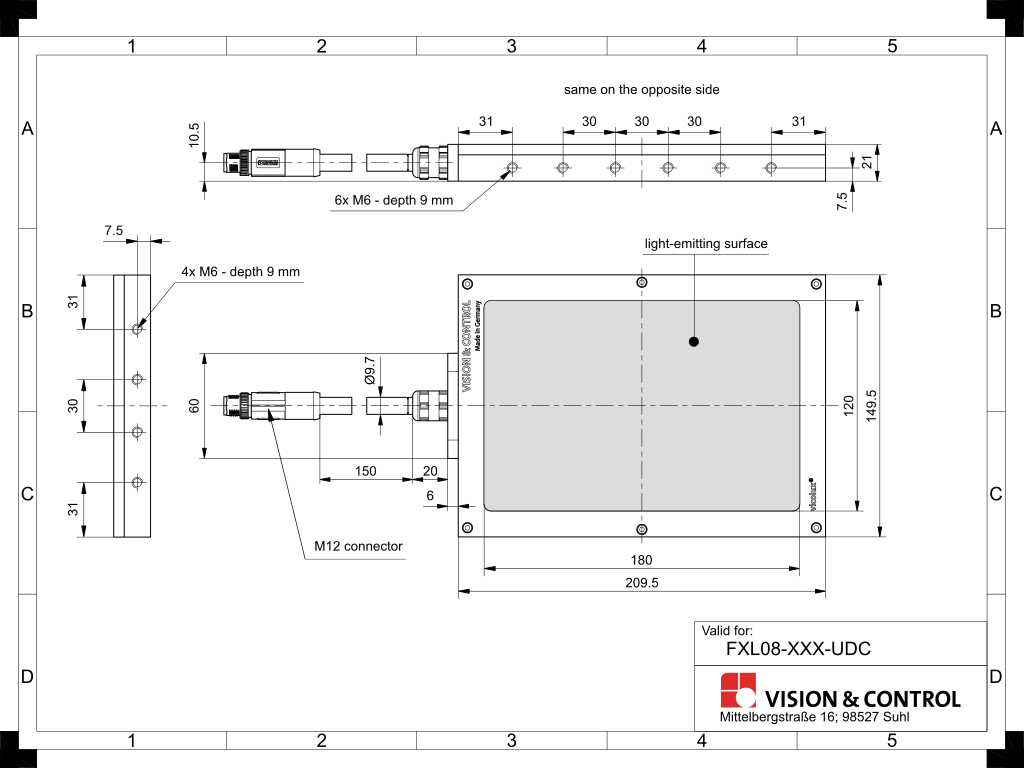

Dimensional drawing in mm
Pin assignment M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, white, diffuse, lf-size: 180x120 mm, flashable by flash controller
Order number:
1-15-731
EAN:
4251692654804
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 180 mm x 120 mm |
| Light design | Diffuse |
| Light colour (typ.) | White, 5700 K |
| Special feature | Flashable with flash controller |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 1,060 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 150 mm (without M12 connector) |
| Cable diameter | 9.7 mm |
| Cable structure | 4 x 1.5 mm² |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, IR850, diffuse, lf-size: 180x120 mm, flashable by flash controller
Order number:
1-15-732
EAN:
4251692654811
Actual Notice:
Not for new developments
Please use the products of the A-DIF or FDLRL series for new developments.
Please use the products of the A-DIF or FDLRL series for new developments.
Downloads:
Characteristics
- flat LED area light with diffuse illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 180 mm x 120 mm |
| Light design | Diffuse |
| Light colour (typ.) | Infrared, 850 nm |
| Special feature | Flashable with flash controller |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 1,060 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 150 mm (without M12 connector) |
| Cable diameter | 9.7 mm |
| Cable structure | 4 x 1.5 mm² |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Load more products..
