Title:
Short description:
area light, white, directed, lf-size: 240x180 mm, flashable by flash controller
Order number:
1-15-737
EAN:
4251692654859
Actual Notice:
Not for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Downloads:
Characteristics
- flat LED area light with direct illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Directed |
| Light colour (typ.) | White, 5700 K |
| Special feature | Flashable with flash controller |
| Irradiance | |
| • Continuous operation | 50 W/m² |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,000 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 150 mm (without M12 connector) |
| Cable diameter | 9.7 mm |
| Cable structure | 4 x 1.5 mm² |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, IR850, directed, lf-size: 240x180 mm, flashable by flash controller
Order number:
1-15-738
EAN:
4251692654866
Actual Notice:
Not for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Downloads:
Characteristics
- flat LED area light with direct illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Directed |
| Light colour (typ.) | Infrared, 850 nm |
| Special feature | Flashable with flash controller |
| Irradiance | |
| • Continuous operation | 95 W/m² |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,000 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 150 mm (without M12 connector) |
| Cable diameter | 9.7 mm |
| Cable structure | 4 x 1.5 mm² |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, red, directed, lf-size: 240x180 mm, flashable by flash controller
Order number:
1-15-735
EAN:
4251692654835
Actual Notice:
Not for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Downloads:
Characteristics
- flat LED area light with direct illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Directed |
| Light colour (typ.) | Red, 633 nm |
| Special feature | Flashable with flash controller |
| Irradiance | |
| • Continuous operation | 66 W/m² |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,000 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 150 mm (without M12 connector) |
| Cable diameter | 9.7 mm |
| Cable structure | 4 x 1.5 mm² |
Notices
The lighting can only be operated in conjunction with a lighting controller or a suitable current source.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
vicolux® smart light lighting controllers limit the electrical parameters automatically and also monitor the temperature of the device.
Drawings
Dimensional drawing in mm
Pin assignment M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-607 | Cable-M8-4p-4A-straight-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-606 | Cable-M8-4p-4A-angled-10m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, blue, directed, lf-size: 240x180 mm, static
Order number:
1-15-804
EAN:
4251692655221
Actual Notice:
Not for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Downloads:
Characteristics
- flat LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Directed |
| Light colour (typ.) | Blau, 470 nm |
| Operating mode | Switchable continuous operation |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 3 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 53 W (2.2 A at 24 VDC) |
| Irradiance | 22.5 W/m² at 100 mm |
| Illuminance | 1,500 lx at 100 mm |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,400 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 4-core
Title:
Short description:
area light, white, directed, lf-size: 240x180 mm, static
Order number:
1-15-806
EAN:
4251692655238
Actual Notice:
Not for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Downloads:
Characteristics
- flat LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Directed |
| Light colour (typ.) | White, 5700 K |
| Operating mode | Switchable continuous operation |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 3 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 53 W (2.2 A at 24 VDC) |
| Irradiance | 50 W/m² at 100 mm |
| Illuminance | 12,500 lx at 100 mm |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,400 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 4-core
Title:
Short description:
area light, IR850, directed, lf-size: 240x180 mm, static
Order number:
1-15-818
EAN:
4251692655245
Actual Notice:
Not for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Downloads:
Characteristics
- flat LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Directed |
| Light colour (typ.) | Infrared, 850 nm |
| Operating mode | Switchable continuous operation |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 3 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 53 W (2.2 A at 24 VDC) |
| Irradiance | 95.4 W/m² at 100 mm |
| Illuminance | - |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,400 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings

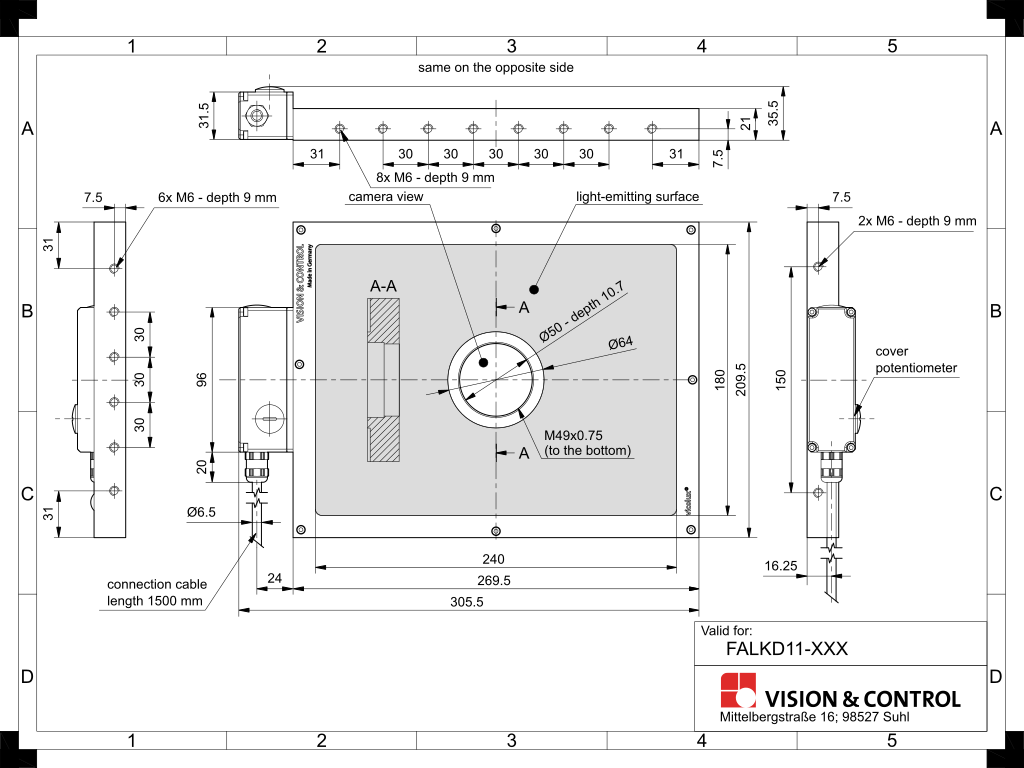

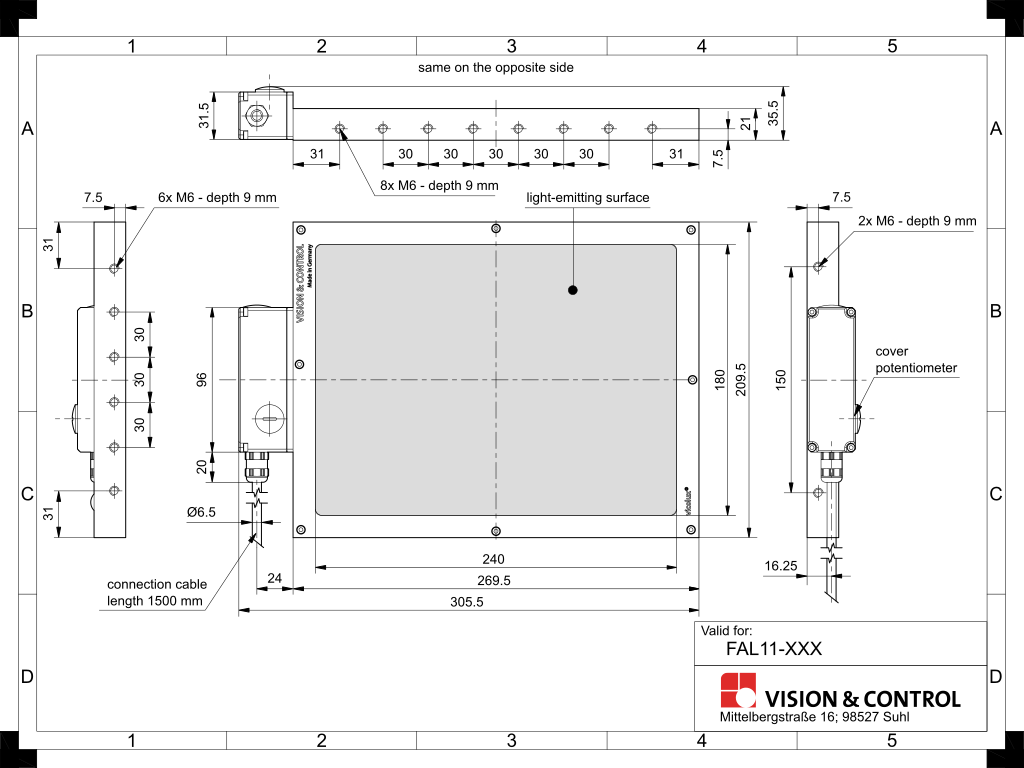

Dimensional drawing in mm
Pin assignment: cable open, 4-core
Title:
Short description:
area light, red, directed, lf-size: 240x180 mm, static
Order number:
1-15-800
EAN:
4251692655214
Actual Notice:
Not for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Downloads:
Characteristics
- flat LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Directed |
| Light colour (typ.) | Red, 633 nm |
| Operating mode | Switchable continuous operation |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 3 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 53 W (2.2 A at 24 VDC) |
| Irradiance | 66.5 W/m² at 100 mm |
| Illuminance | 13,300 lx at 100 mm |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,400 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 4-core
Short description:
area light, blue, directed, lf-size: 240x180 mm, static
Order number:
1-15-824
EAN:
4251692655269
Actual Notice:
Not for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Downloads:
Characteristics
- flat LED area light with direct illumination and camera view
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Directed |
| Light colour (typ.) | Blau, 470 nm |
| Operating mode | Switchable continuous operation |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 3 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 35 W (1.45 A at 24 VDC) |
| Irradiance | 20.6 W/m² at 100 mm |
| Illuminance | 1,370 lx at 100 mm |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,400 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 4-core
Short description:
area light, white, directed, lf-size: 240x180 mm, static
Order number:
1-15-826
EAN:
4251692655276
Actual Notice:
Not for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Downloads:
Characteristics
- flat LED area light with direct illumination and camera view
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Directed |
| Light colour (typ.) | White, 5700 K |
| Operating mode | Switchable continuous operation |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 3 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 35 W (1.45 A at 24 VDC) |
| Irradiance | 45.8 W/m² at 100 mm |
| Illuminance | 11,450 lx at 100 mm |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,400 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 4-core
Short description:
area light, IR850, directed, lf-size: 240x180 mm, static
Order number:
1-15-834
EAN:
4251692655283
Actual Notice:
Not for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Downloads:
Characteristics
- flat LED area light with direct illumination and camera view
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Directed |
| Light colour (typ.) | Infrared, 850 nm |
| Operating mode | Switchable continuous operation |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 3 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 35 W (1.45 A at 24 VDC) |
| Irradiance | 90 W/m² at 100 mm |
| Illuminance | - |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,400 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 4-core
Short description:
area light, red, directed, lf-size: 240x180 mm, static
Order number:
1-15-820
EAN:
4251692655252
Actual Notice:
Not for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Downloads:
Characteristics
- flat LED area light with direct illumination and camera view
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 240 mm x 180 mm |
| Light design | Directed |
| Light colour (typ.) | Red, 633 nm |
| Operating mode | Switchable continuous operation |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 3 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 35 W (1.45 A at 24 VDC) |
| Irradiance | 60.9 W/m² at 100 mm |
| Illuminance | 12,180 lx at 100 mm |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 2,400 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 4-core
Title:
Short description:
bar light, blue, diffuse, lf-size: 7 mm x 25 mm, flashable by flash controller
Order number:
1-34-082
EAN:
4251692674802
Downloads:
Characteristics
- LED bar light with diffuse illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- metal casing, optical material: PMMA
- multiple mounting options
- connection: cable with M8 connector, cable outlet left
- Alternative: cable outlet right (Order no. 1-34-282)
Technical data
| Luminous field | 7 mm x 25 mm |
| Light colour | Blue, 470 nm |
| Light design | Diffus |
| Special feature | Flashable with flash controller |
| Degree of protection | IP50 |
| Safety class | III, Schutzkleinspannung (SELV) |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Ambient temperature | -10°C bis 45°C |
| Housing material | Aluminium black anodised |
| Weight | 23 g |
| Power consumption | max. 0.4 W |
| Radiance | |
| • Continuous operation | 100 W/(m²sr) |
| • Flash mode | 800 W/(m²sr) |
Drawings
Dimensional drawing in mm: length = 25 mm; width = 7 mm
Pin assignments, M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-826 | Tension clamp LxL7 series | for variable attachment and extension of the LxL7 series, l=25mm, w=17mm |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
bar light, white, diffuse, lf-size: 7 mm x 25 mm, flashable by flash controller
Order number:
1-34-083
EAN:
4251692674819
Downloads:
Characteristics
- LED bar light with diffuse illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- metal casing, optical material: PMMA
- multiple mounting options
- connection: cable with M8 connector, cable outlet left
- Alternative: cable outlet right (Order no. 1-34-283)
Technical data
| Luminous field | 7 mm x 25 mm |
| Light colour | White, 5700 K |
| Light design | Diffus |
| Special feature | Flashable with flash controller |
| Degree of protection | IP50 |
| Safety class | III, Schutzkleinspannung (SELV) |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Ambient temperature | -10°C bis 45°C |
| Housing material | Aluminium black anodised |
| Weight | 23 g |
| Power consumption | max. 0.4 W |
| Radiance | |
| • Continuous operation | 140 W/(m²sr) |
| • Flash mode | 1300 W/(m²sr) |
Drawings
Dimensional drawing in mm: length = 25 mm; width = 7 mm
Pin assignments, M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-826 | Tension clamp LxL7 series | for variable attachment and extension of the LxL7 series, l=25mm, w=17mm |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
bar light, IR850, diffuse, lf-size: 7 mm x 25 mm, flashable by flash controller
Order number:
1-34-084
EAN:
4251692674826
Downloads:
Characteristics
- LED bar light with diffuse illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- metal casing, optical material: PMMA
- multiple mounting options
- connection: cable with M8 connector, cable outlet left
- Alternative: cable outlet right (Order no. 1-34-284)
Technical data
| Luminous field | 7 mm x 25 mm |
| Light colour | Infrared, 850 nm |
| Light design | Diffus |
| Special feature | Flashable with flash controller |
| Degree of protection | IP50 |
| Safety class | III, Schutzkleinspannung (SELV) |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Ambient temperature | -10°C bis 45°C |
| Housing material | Aluminium black anodised |
| Weight | 23 g |
| Power consumption | max. 0.4 W |
| Radiance | |
| • Continuous operation | 180 W/(m²sr) |
| • Flash mode | 3420 W/(m²sr) |
Drawings
Dimensional drawing in mm: length = 25 mm; width = 7 mm
Pin assignments, M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-826 | Tension clamp LxL7 series | for variable attachment and extension of the LxL7 series, l=25mm, w=17mm |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
bar light, red, diffuse, lf-size: 7 mm x 25 mm, flashable by flash controller
Order number:
1-34-080
EAN:
4251692674789
Downloads:
Characteristics
- LED bar light with diffuse illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- metal casing, optical material: PMMA
- multiple mounting options
- connection: cable with M8 connector, cable outlet left
- Alternative: cable outlet right (Order no. 1-34-280)
Technical data
| Luminous field | 7 mm x 25 mm |
| Light colour | Red, 625 nm |
| Light design | Diffus |
| Special feature | Flashable with flash controller |
| Degree of protection | IP50 |
| Safety class | III, Schutzkleinspannung (SELV) |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Ambient temperature | -10°C bis 45°C |
| Housing material | Aluminium black anodised |
| Weight | 23 g |
| Power consumption | max. 0.4 W |
| Radiance | |
| • Continuous operation | 150 W/(m²sr) |
| • Flash mode | 420 W/(m²sr) |
Drawings
Dimensional drawing in mm: length = 25 mm; width = 7 mm
Pin assignments, M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-826 | Tension clamp LxL7 series | for variable attachment and extension of the LxL7 series, l=25mm, w=17mm |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Load more products..
