Title:
Short description:
area light, white, directed, lf-size: 60x60 mm, M8-4pin, flashable by flash controller
Order number:
1-21-193
EAN:
4251692658581
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- multiple mounting options
- metal casing, optical material: PMMA
Technical data
| Light-emitting surface | 60 mm x 60 mm |
| Light colour | White, 5700 K |
| Light design | Directed |
| Special feature | Flashable with flash controller |
| Operating voltage | For current source only! |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 120 g |
| Irradiance ¹) | |
| • Continuous operation | 163 W/m² |
| ¹) working distance = 50 mm |
Drawings
Dimensional drawing in mm: length = 60 mm; width = 60 mm
Pin assignments, M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting systems | ||
| 1-20-070 | Adjustable holder xL60 | for xL60x60, stepless rotatable and swiveling mounting, incl. screws |
| diffusers | ||
| 1-20-060 | Diffusor 40% 60x60x1 | for AL60x60 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-20-062 | Polarizer linear 60x60x0.18 | for AL60x60 and DL60x60, polarizing filter, neutral gray, self-adhesive |
| protective covers | ||
| 1-20-061 | Clear cover 60x60x1 | for AL60x60, protective cover made of PMMA, screwable |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, IR850, directed, lf-size: 60x60 mm, M8-4pin, flashable by flash controller
Order number:
1-21-194
EAN:
4251692658598
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- multiple mounting options
- metal casing, optical material: PMMA
Technical data
| Light-emitting surface | 60 mm x 60 mm |
| Light colour | Infrared, 850 nm |
| Light design | Directed |
| Special feature | Flashable with flash controller |
| Operating voltage | For current source only! |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 120 g |
| Irradiance ¹) | |
| • Continuous operation | 178 W/m² |
| ¹) working distance = 50 mm |
Drawings
Dimensional drawing in mm: length = 60 mm; width = 60 mm
Pin assignments, M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting systems | ||
| 1-20-070 | Adjustable holder xL60 | for xL60x60, stepless rotatable and swiveling mounting, incl. screws |
| diffusers | ||
| 1-20-060 | Diffusor 40% 60x60x1 | for AL60x60 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-20-062 | Polarizer linear 60x60x0.18 | for AL60x60 and DL60x60, polarizing filter, neutral gray, self-adhesive |
| protective covers | ||
| 1-20-061 | Clear cover 60x60x1 | for AL60x60, protective cover made of PMMA, screwable |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, red, directed, lf-size: 60x60 mm, M8-4pin, flashable by flash controller
Order number:
1-21-190
EAN:
4251692658550
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- multiple mounting options
- metal casing, optical material: PMMA
Technical data
| Light-emitting surface | 60 mm x 60 mm |
| Light colour | Red, 633 nm |
| Light design | Directed |
| Special feature | Flashable with flash controller |
| Operating voltage | For current source only! |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 120 g |
| Irradiance ¹) | |
| • Continuous operation | 117 W/m² |
| ¹) working distance = 50 mm |
Drawings
Dimensional drawing in mm: length = 60 mm; width = 60 mm
Pin assignments, M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting systems | ||
| 1-20-070 | Adjustable holder xL60 | for xL60x60, stepless rotatable and swiveling mounting, incl. screws |
| diffusers | ||
| 1-20-060 | Diffusor 40% 60x60x1 | for AL60x60 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-20-062 | Polarizer linear 60x60x0.18 | for AL60x60 and DL60x60, polarizing filter, neutral gray, self-adhesive |
| protective covers | ||
| 1-20-061 | Clear cover 60x60x1 | for AL60x60, protective cover made of PMMA, screwable |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, green, directed, lf-size: 60x60 mm, M8-4pin, flashable by flash controller
Order number:
1-21-191
EAN:
4251692658567
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- multiple mounting options
- metal casing, optical material: PMMA
Technical data
| Light-emitting surface | 60 mm x 60 mm |
| Light colour | Green, 525 nm |
| Light design | Directed |
| Special feature | Flashable with flash controller |
| Operating voltage | For current source only! |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 120 g |
Drawings
Dimensional drawing in mm: length = 60 mm; width = 60 mm
Pin assignments, M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting systems | ||
| 1-20-070 | Adjustable holder xL60 | for xL60x60, stepless rotatable and swiveling mounting, incl. screws |
| diffusers | ||
| 1-20-060 | Diffusor 40% 60x60x1 | for AL60x60 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-20-062 | Polarizer linear 60x60x0.18 | for AL60x60 and DL60x60, polarizing filter, neutral gray, self-adhesive |
| protective covers | ||
| 1-20-061 | Clear cover 60x60x1 | for AL60x60, protective cover made of PMMA, screwable |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, blue, directed, lf-size: 60x60 mm, M5-4pin, static / switchable
Order number:
1-20-102
EAN:
4251692658109
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug on the casing
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Light-emitting surface | 60 mm x 60 mm |
| Light colour | Blue, 470 nm |
| Light design | Directed |
| Operating voltage | 24 VDC (10 - 30 V) |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 105 g |
| Irradiance ¹) | |
| • Continuous operation | 128 W/m² |
| ¹) working distance = 50 mm |
Drawings

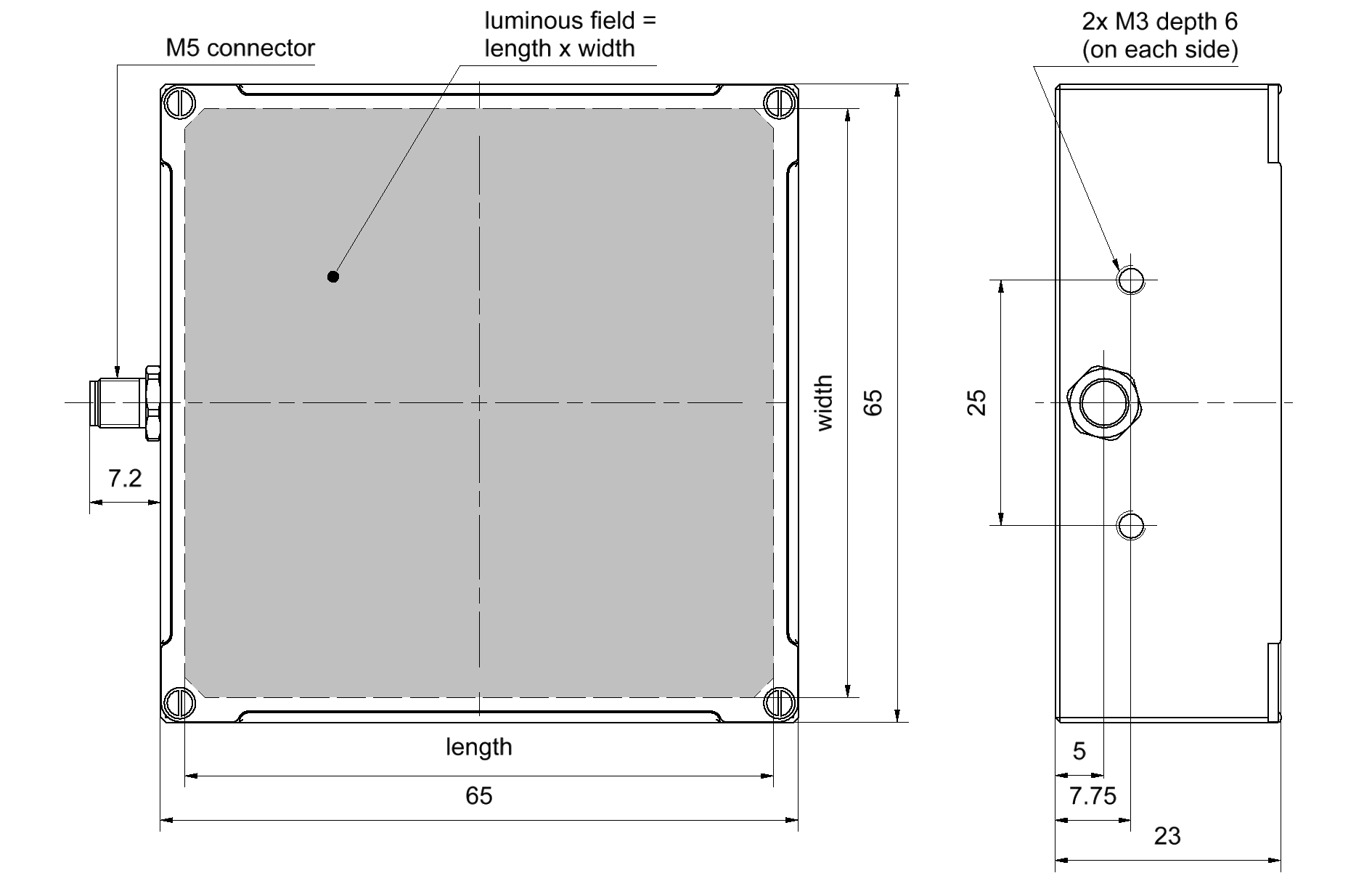

Dimensional drawing in mm: length = 60 mm; width = 60 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting systems | ||
| 1-20-070 | Adjustable holder xL60 | for xL60x60, stepless rotatable and swiveling mounting, incl. screws |
| diffusers | ||
| 1-20-060 | Diffusor 40% 60x60x1 | for AL60x60 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-20-062 | Polarizer linear 60x60x0.18 | for AL60x60 and DL60x60, polarizing filter, neutral gray, self-adhesive |
| protective covers | ||
| 1-20-061 | Clear cover 60x60x1 | for AL60x60, protective cover made of PMMA, screwable |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
area light, white, directed, lf-size: 60x60 mm, M5-4pin, static / switchable
Order number:
1-20-103
EAN:
4251692658116
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug on the casing
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Light-emitting surface | 60 mm x 60 mm |
| Light colour | White, 5700 K |
| Light design | Directed |
| Operating voltage | 24 VDC (10 - 30 V) |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 105 g |
| Irradiance ¹) | |
| • Continuous operation | 163 W/m² |
| ¹) working distance = 50 mm |
Drawings
Dimensional drawing in mm: length = 60 mm; width = 60 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting systems | ||
| 1-20-070 | Adjustable holder xL60 | for xL60x60, stepless rotatable and swiveling mounting, incl. screws |
| diffusers | ||
| 1-20-060 | Diffusor 40% 60x60x1 | for AL60x60 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-20-062 | Polarizer linear 60x60x0.18 | for AL60x60 and DL60x60, polarizing filter, neutral gray, self-adhesive |
| protective covers | ||
| 1-20-061 | Clear cover 60x60x1 | for AL60x60, protective cover made of PMMA, screwable |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
area light, IR850, directed, lf-size: 60x60 mm, M5-4pin, static / switchable
Order number:
1-20-104
EAN:
4251692658123
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug on the casing
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Light-emitting surface | 60 mm x 60 mm |
| Light colour | Infrared, 850 nm |
| Light design | Directed |
| Operating voltage | 24 VDC (10 - 30 V) |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 105 g |
| Irradiance ¹) | |
| • Continuous operation | 178 W/m² |
| ¹) working distance = 50 mm |
Drawings
Dimensional drawing in mm: length = 60 mm; width = 60 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting systems | ||
| 1-20-070 | Adjustable holder xL60 | for xL60x60, stepless rotatable and swiveling mounting, incl. screws |
| diffusers | ||
| 1-20-060 | Diffusor 40% 60x60x1 | for AL60x60 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-20-062 | Polarizer linear 60x60x0.18 | for AL60x60 and DL60x60, polarizing filter, neutral gray, self-adhesive |
| protective covers | ||
| 1-20-061 | Clear cover 60x60x1 | for AL60x60, protective cover made of PMMA, screwable |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
area light, red, directed, lf-size: 60x60 mm, M5-4pin, static / switchable
Order number:
1-20-100
EAN:
4251692658093
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug on the casing
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Light-emitting surface | 60 mm x 60 mm |
| Light colour | Red, 633 nm |
| Light design | Directed |
| Operating voltage | 24 VDC (10 - 30 V) |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 105 g |
| Irradiance ¹) | |
| • Continuous operation | 117 W/m² |
| ¹) working distance = 50 mm |
Drawings
Dimensional drawing in mm: length = 60 mm; width = 60 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting systems | ||
| 1-20-070 | Adjustable holder xL60 | for xL60x60, stepless rotatable and swiveling mounting, incl. screws |
| diffusers | ||
| 1-20-060 | Diffusor 40% 60x60x1 | for AL60x60 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-20-062 | Polarizer linear 60x60x0.18 | for AL60x60 and DL60x60, polarizing filter, neutral gray, self-adhesive |
| protective covers | ||
| 1-20-061 | Clear cover 60x60x1 | for AL60x60, protective cover made of PMMA, screwable |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
area light, blue, directed, LF-size: 55x85 mm, M5, continuous and pulse mode
Order number:
1-11-198
EAN:
4251692654064
Actual Notice:
Not for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Downloads:
Characteristics
- flat LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or flash operation
- brightness and Flash duration pre-set
- connection: M5 plug on the casing
- metal casing, optical material: as optional accessories
- multiple mounting options
Technical data
| Light-emitting surface | 55 mm x 85 mm |
| Light design | Directed |
| Light colour (typ.) | Blau, 470 nm |
| Operating mode | Schaltbarer Dauerbetrieb (50 ms - ∞) Blitzbetrieb (Blitzdauer 100 µs) |
| Continuous operation | |
| • Operation voltage | 10 ... 30 VDC |
| • Power consumption | max. 10 W |
| • Irradiance | 47 W/m² |
| • Illuminance | 3,200 lx |
| Flash mode | |
| • Operation voltage | 18 ... 30 VDC |
| • Power consumption | max. 10 W |
| • Irradiance | 467 W/m² |
| • Illuminance | 32,000 lx |
| Housing material | Aluminium, black anodised |
| Weight | 240 g |
| Degree of protection | IP67 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-11-212 | Diffusor 15% 60x90x1.8 | for FAL60x90, diffuser plate made of PMMA, incl. screws |
| 1-11-213 | Diffusor 40% 60x90x1 | for FAL60x90, diffuser plate made of PMMA, incl. screws |
| Polarisers for Area Lights | ||
| 1-11-214 | Polarizer linear 60x90x0.75 | for FAL60x90, polarizing filter, neutral gray, incl. screws |
| Focusing and Fresnel lens | ||
| 1-11-215 | Fresnel lens F100 60x90x1.8 | for FAL60x90, focusing lens made of PMMA, for WD=100 mm, incl. screws |
| 1-11-217 | Fresnel lens F-130 60x90x1.8 | for FAL60x90, divergent lens made of PMMA, incl. screws |
| 1-11-216 | Fresnel lens F150 60x90x1.8 | for FAL60x90, focusing lens made of PMMA, for WD=150 mm, incl. screws |
| protective covers | ||
| 1-11-218 | Clear cover 60x90x2 | for FAL60x90, protective cover made of PMMA, incl. screws |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
area light, white, directed, LF-size: 55x85 mm, M5, continuous and pulse mode
Order number:
1-11-197
EAN:
4251692654057
Actual Notice:
Not for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Downloads:
Characteristics
- flat LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or flash operation
- brightness and Flash duration pre-set
- connection: M5 plug on the casing
- metal casing, optical material: as optional accessories
- multiple mounting options
Technical data
| Light-emitting surface | 55 mm x 85 mm |
| Light design | Directed |
| Light colour (typ.) | White, 5700 K |
| Operating mode | Schaltbarer Dauerbetrieb (50 ms - ∞) Blitzbetrieb (Blitzdauer 100 µs) |
| Continuous operation | |
| • Operation voltage | 10 ... 30 VDC |
| • Power consumption | max. 10 W |
| • Irradiance | 155 W/m² |
| • Illuminance | 42,000 lx |
| Flash mode | |
| • Operation voltage | 18 ... 30 VDC |
| • Power consumption | max. 10 W |
| • Irradiance | 1,554 W/m² |
| • Illuminance | 420,000 lx |
| Housing material | Aluminium, black anodised |
| Weight | 240 g |
| Degree of protection | IP67 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-11-212 | Diffusor 15% 60x90x1.8 | for FAL60x90, diffuser plate made of PMMA, incl. screws |
| 1-11-213 | Diffusor 40% 60x90x1 | for FAL60x90, diffuser plate made of PMMA, incl. screws |
| Polarisers for Area Lights | ||
| 1-11-214 | Polarizer linear 60x90x0.75 | for FAL60x90, polarizing filter, neutral gray, incl. screws |
| Focusing and Fresnel lens | ||
| 1-11-215 | Fresnel lens F100 60x90x1.8 | for FAL60x90, focusing lens made of PMMA, for WD=100 mm, incl. screws |
| 1-11-217 | Fresnel lens F-130 60x90x1.8 | for FAL60x90, divergent lens made of PMMA, incl. screws |
| 1-11-216 | Fresnel lens F150 60x90x1.8 | for FAL60x90, focusing lens made of PMMA, for WD=150 mm, incl. screws |
| protective covers | ||
| 1-11-218 | Clear cover 60x90x2 | for FAL60x90, protective cover made of PMMA, incl. screws |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
area light, IR850, directed, LF-size: 55x85 mm, M5, continuous and pulse mode
Order number:
1-11-202
EAN:
4251692654071
Actual Notice:
Not for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Downloads:
Characteristics
- flat LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or flash operation
- brightness and Flash duration pre-set
- connection: M5 plug on the casing
- metal casing, optical material: as optional accessories
- multiple mounting options
Technical data
| Light-emitting surface | 55 mm x 85 mm |
| Light design | Directed |
| Light colour (typ.) | Infrared, 850 nm |
| Operating mode | Schaltbarer Dauerbetrieb (50 ms - ∞) Blitzbetrieb (Blitzdauer 100 µs) |
| Continuous operation | |
| • Operation voltage | 10 ... 30 VDC |
| • Power consumption | max. 10 W |
| • Irradiance | 138 W/m² |
| • Illuminance | - |
| Flash mode | |
| • Operation voltage | 18 ... 30 VDC |
| • Power consumption | max. 10 W |
| • Irradiance | 1,518 W/m² |
| • Illuminance | - |
| Housing material | Aluminium, black anodised |
| Weight | 240 g |
| Degree of protection | IP67 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-11-212 | Diffusor 15% 60x90x1.8 | for FAL60x90, diffuser plate made of PMMA, incl. screws |
| 1-11-213 | Diffusor 40% 60x90x1 | for FAL60x90, diffuser plate made of PMMA, incl. screws |
| Polarisers for Area Lights | ||
| 1-11-214 | Polarizer linear 60x90x0.75 | for FAL60x90, polarizing filter, neutral gray, incl. screws |
| Focusing and Fresnel lens | ||
| 1-11-215 | Fresnel lens F100 60x90x1.8 | for FAL60x90, focusing lens made of PMMA, for WD=100 mm, incl. screws |
| 1-11-217 | Fresnel lens F-130 60x90x1.8 | for FAL60x90, divergent lens made of PMMA, incl. screws |
| 1-11-216 | Fresnel lens F150 60x90x1.8 | for FAL60x90, focusing lens made of PMMA, for WD=150 mm, incl. screws |
| protective covers | ||
| 1-11-218 | Clear cover 60x90x2 | for FAL60x90, protective cover made of PMMA, incl. screws |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
area light, red, directed, LF-size: 55x85 mm, M5, continuous and pulse mode
Order number:
1-11-196
EAN:
4251692654040
Actual Notice:
Not for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Downloads:
Characteristics
- flat LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or flash operation
- brightness and Flash duration pre-set
- connection: M5 plug on the casing
- metal casing, optical material: as optional accessories
- multiple mounting options
Technical data
| Light-emitting surface | 55 mm x 85 mm |
| Light design | Directed |
| Light colour (typ.) | Red, 633 nm |
| Operating mode | Schaltbarer Dauerbetrieb (50 ms - ∞) Blitzbetrieb (Blitzdauer 100 µs) |
| Continuous operation | |
| • Operation voltage | 10 ... 30 VDC |
| • Power consumption | max. 10 W |
| • Irradiance | 143 W/m² |
| • Illuminance | 28,000 lx |
| Flash mode | |
| • Operation voltage | 18 ... 30 VDC |
| • Power consumption | max. 10 W |
| • Irradiance | 1,285 W/m² |
| • Illuminance | 252,000 lx |
| Housing material | Aluminium, black anodised |
| Weight | 240 g |
| Degree of protection | IP67 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-11-212 | Diffusor 15% 60x90x1.8 | for FAL60x90, diffuser plate made of PMMA, incl. screws |
| 1-11-213 | Diffusor 40% 60x90x1 | for FAL60x90, diffuser plate made of PMMA, incl. screws |
| Polarisers for Area Lights | ||
| 1-11-214 | Polarizer linear 60x90x0.75 | for FAL60x90, polarizing filter, neutral gray, incl. screws |
| Focusing and Fresnel lens | ||
| 1-11-215 | Fresnel lens F100 60x90x1.8 | for FAL60x90, focusing lens made of PMMA, for WD=100 mm, incl. screws |
| 1-11-217 | Fresnel lens F-130 60x90x1.8 | for FAL60x90, divergent lens made of PMMA, incl. screws |
| 1-11-216 | Fresnel lens F150 60x90x1.8 | for FAL60x90, focusing lens made of PMMA, for WD=150 mm, incl. screws |
| protective covers | ||
| 1-11-218 | Clear cover 60x90x2 | for FAL60x90, protective cover made of PMMA, incl. screws |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
area light, green, directed, lf-size: 35x29 mm, controlled
Order number:
1-15-309
EAN:
4251692654118
Actual Notice:
Not for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Downloads:
Characteristics
- flat LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 35 mm x 29 mm |
| Light design | Directed |
| Light colour (typ.) | Green, 525 nm |
| Operating mode | Switchable continuous operation Pulse operation (10 µs - ∞) |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 1 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 4.8 W (200 mA at 24 VDC) |
| Irradiance | 20.6 W/m² at 50 mm |
| Illuminance | 10,320 lx at 50 mm |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 180 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 6-core
Title:
Short description:
area light, blue, directed, lf-size: 35x29 mm, controlled
Order number:
1-15-308
EAN:
4251692654101
Actual Notice:
Not for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Downloads:
Characteristics
- flat LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 35 mm x 29 mm |
| Light design | Directed |
| Light colour (typ.) | Blau, 470 nm |
| Operating mode | Switchable continuous operation Pulse operation (10 µs - ∞) |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 1 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 4.8 W (200 mA at 24 VDC) |
| Irradiance | 16.5 W/m² at 50 mm |
| Illuminance | 970 lx at 50 mm |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 180 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 6-core
Title:
Short description:
area light, white, directed, lf-size: 35x29 mm, controlled
Order number:
1-15-307
EAN:
4251692654095
Actual Notice:
Not for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Please use the products of the A-CLR, A-CLR or FALRL series for new developments
Downloads:
Characteristics
- flat LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- pulse-length and brightness adjustable
- connection: cable with open ends
- metal casing, optical material: glass
- multiple mounting options
Technical data
| Light-emitting surface | 35 mm x 29 mm |
| Light design | Directed |
| Light colour (typ.) | White, 5700 K |
| Operating mode | Switchable continuous operation Pulse operation (10 µs - ∞) |
| Special feature | Brightness setting via analog control voltage 0 - 10 VDC (switchable 1 ms - ∞) or manually on the potentiometer |
| Operation voltage | 24 VDC (10 - 30 V) |
| Power consumption | max. 4.8 W (200 mA at 24 VDC) |
| Irradiance | 45.9 W/m² at 50 mm |
| Illuminance | 15,300 lx at 50 mm |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Weight | 180 g |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Ambient temperature | - 10 °C ... + 45 °C |
| Cable | |
| Cable length | 1,500 mm |
| Cable diameter | 6.5 mm |
| Cable structure | 4 x 0.25 mm² and 3 x 0.5 mm² |
| Drag chain suitable | yes |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm
Pin assignment: cable open, 6-core
Load more products..
