Title:
Short description:
area light, green, directed, lf-size: 30x60 mm, M8-4pin, flashable by flash controller
Order number:
1-21-163
EAN:
4251692658369
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- multiple mounting options
- metal casing, optical material: PMMA
Technical data
| Light-emitting surface | 30 mm x 60 mm |
| Light colour | Grün, 530 nm |
| Light design | Directed |
| Special feature | Flashable with flash controller |
| Operating voltage | For current source only! |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 95 g |
Drawings
Dimensional drawing in mm: length = 60 mm; width = 30 mm
Pin assignments, M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-21-060 | Diffusor 40% 30x60x1 | for AL30x60 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-21-062 | Polarizer linear 30x60x0.18 | for AL30x60 and DL30x60, polarizing filter, neutral gray, self-adhesive |
| 1-21-063 | Polarizer linear 30x60x2 | for AL30x60, polarizing filter, neutral gray, screwable |
| protective covers | ||
| 1-21-061 | Clear cover 30x60x1 | for AL30x60, protective cover made of PMMA, screwable |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, blue, directed, lf-size: 30x60 mm, M5-4pin, static / switchable
Order number:
1-21-102
EAN:
4251692658222
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug on the casing
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Light-emitting surface | 30 mm x 60 mm |
| Light colour | Blue, 470 nm |
| Light design | Directed |
| Operating voltage | 24 VDC (10 - 30 V) |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 85 g |
| Irradiance ¹) | |
| • Continuous operation | 212 W/m² |
| ¹) working distance = 50 mm |
Drawings

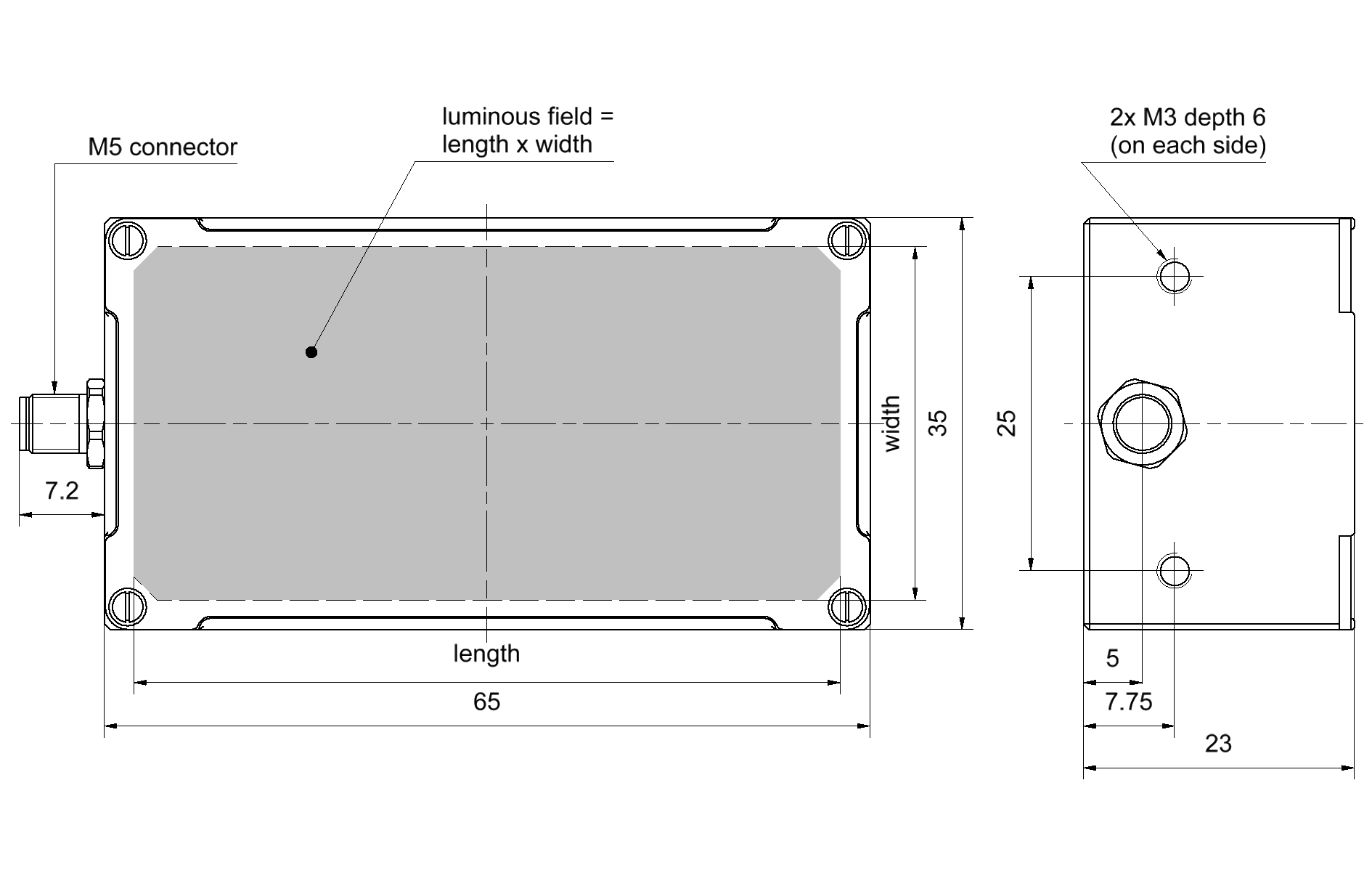

Dimensional drawing in mm: length = 60 mm; width = 30 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-21-060 | Diffusor 40% 30x60x1 | for AL30x60 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-21-062 | Polarizer linear 30x60x0.18 | for AL30x60 and DL30x60, polarizing filter, neutral gray, self-adhesive |
| 1-21-063 | Polarizer linear 30x60x2 | for AL30x60, polarizing filter, neutral gray, screwable |
| protective covers | ||
| 1-21-061 | Clear cover 30x60x1 | for AL30x60, protective cover made of PMMA, screwable |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
area light, white, directed, lf-size: 30x60 mm, M5-4pin, static / switchable
Order number:
1-21-103
EAN:
4251692658239
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug on the casing
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Light-emitting surface | 30 mm x 60 mm |
| Light colour | White, 5700 K |
| Light design | Directed |
| Operating voltage | 24 VDC (10 - 30 V) |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 85 g |
| Irradiance ¹) | |
| • Continuous operation | 157 W/m² |
| ¹) working distance = 50 mm |
Drawings
Dimensional drawing in mm: length = 60 mm; width = 30 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-21-060 | Diffusor 40% 30x60x1 | for AL30x60 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-21-062 | Polarizer linear 30x60x0.18 | for AL30x60 and DL30x60, polarizing filter, neutral gray, self-adhesive |
| 1-21-063 | Polarizer linear 30x60x2 | for AL30x60, polarizing filter, neutral gray, screwable |
| protective covers | ||
| 1-21-061 | Clear cover 30x60x1 | for AL30x60, protective cover made of PMMA, screwable |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
area light, IR850, directed, lf-size: 30x60 mm, M5-4pin, static / switchable
Order number:
1-21-104
EAN:
4251692658246
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug on the casing
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Light-emitting surface | 30 mm x 60 mm |
| Light colour | Infrared, 850 nm |
| Light design | Directed |
| Operating voltage | 24 VDC (10 - 30 V) |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 85 g |
| Irradiance ¹) | |
| • Continuous operation | 293 W/m² |
| ¹) working distance = 50 mm |
Drawings
Dimensional drawing in mm: length = 60 mm; width = 30 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-21-060 | Diffusor 40% 30x60x1 | for AL30x60 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-21-062 | Polarizer linear 30x60x0.18 | for AL30x60 and DL30x60, polarizing filter, neutral gray, self-adhesive |
| 1-21-063 | Polarizer linear 30x60x2 | for AL30x60, polarizing filter, neutral gray, screwable |
| protective covers | ||
| 1-21-061 | Clear cover 30x60x1 | for AL30x60, protective cover made of PMMA, screwable |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
area light, red, directed, lf-size: 30x60 mm, M5-4pin, static / switchable
Order number:
1-21-100
EAN:
4251692658215
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug on the casing
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Light-emitting surface | 30 mm x 60 mm |
| Light colour | Red, 633 nm |
| Light design | Directed |
| Operating voltage | 24 VDC (10 - 30 V) |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 85 g |
| Irradiance ¹) | |
| • Continuous operation | 193 W/m² |
| ¹) working distance = 50 mm |
Drawings
Dimensional drawing in mm: length = 60 mm; width = 30 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-21-060 | Diffusor 40% 30x60x1 | for AL30x60 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-21-062 | Polarizer linear 30x60x0.18 | for AL30x60 and DL30x60, polarizing filter, neutral gray, self-adhesive |
| 1-21-063 | Polarizer linear 30x60x2 | for AL30x60, polarizing filter, neutral gray, screwable |
| protective covers | ||
| 1-21-061 | Clear cover 30x60x1 | for AL30x60, protective cover made of PMMA, screwable |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
area light, blue, directed, lf-size: 30x90 mm, M8-4pin, flashable by flash controller
Order number:
1-21-176
EAN:
4251692658475
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- multiple mounting options
- metal casing, optical material: PMMA
Technical data
| Light-emitting surface | 30 mm x 90 mm |
| Light colour | Blue, 470 nm |
| Light design | Directed |
| Special feature | Flashable with flash controller |
| Operating voltage | For current source only! |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 130 g |
| Irradiance ¹) | |
| • Continuous operation | 194 W/m² |
| ¹) working distance = 50 mm |
Drawings

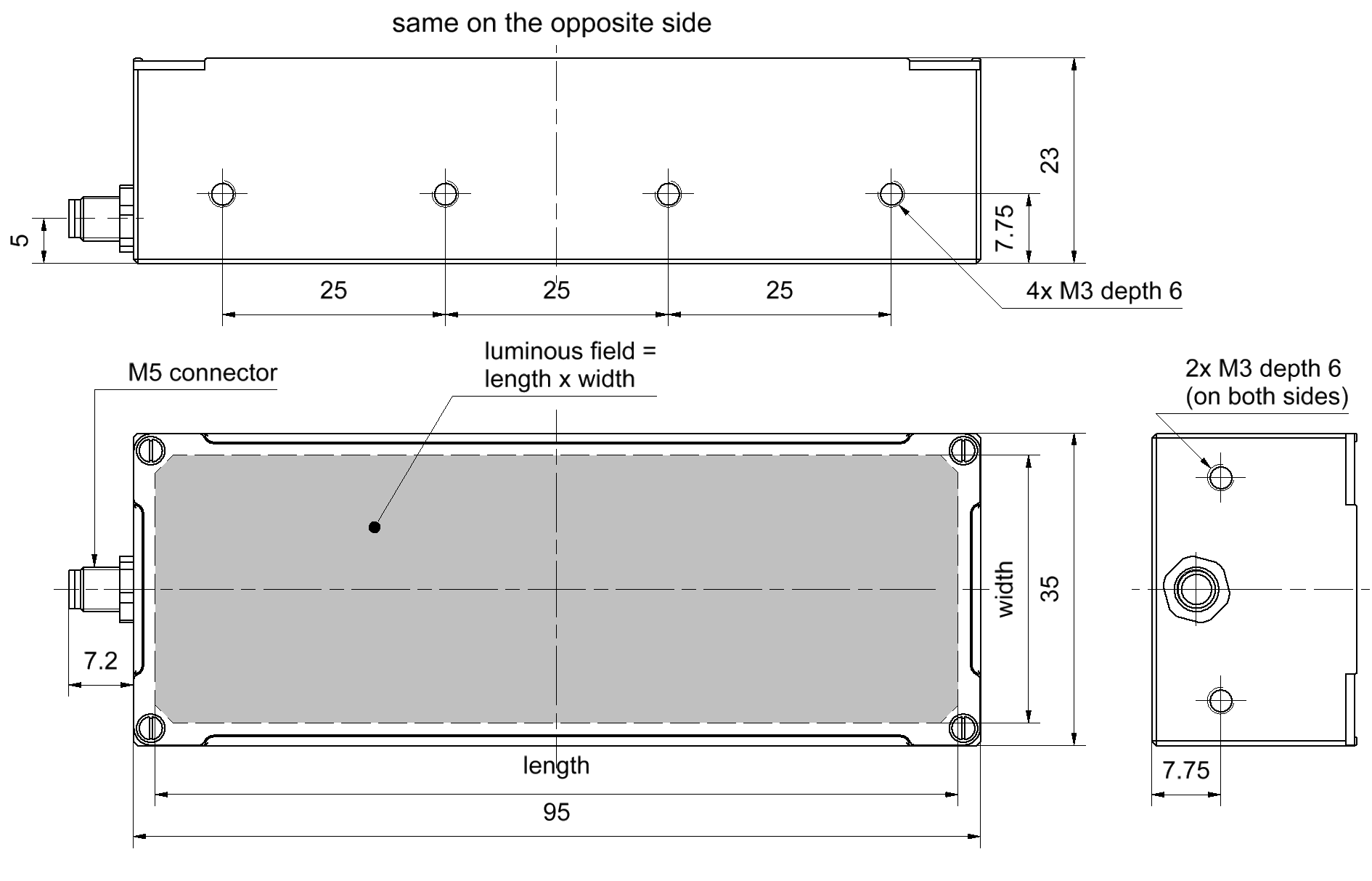

Dimensional drawing in mm: length = 90 mm; width = 30 mm
Pin assignments, M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-21-560 | Diffusor 40% 30x90x1 | for AL30x90 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-21-562 | Polarizer linear 30x90x0.18 | for AL30x90 and DL30x90, polarizing filter, neutral gray, self-adhesive |
| 1-21-563 | Polarizer linear 30x90x2 | for AL30x90, polarizing filter, neutral gray, screwable |
| protective covers | ||
| 1-21-561 | Clear cover 30x90x1 | for AL30x90, protective cover made of PMMA, screwable |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, white, directed, lf-size: 30x90 mm, M8-4pin, flashable by flash controller
Order number:
1-21-177
EAN:
4251692658482
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- multiple mounting options
- metal casing, optical material: PMMA
Technical data
| Light-emitting surface | 30 mm x 90 mm |
| Light colour | White, 5700 K |
| Light design | Directed |
| Special feature | Flashable with flash controller |
| Operating voltage | For current source only! |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 130 g |
| Irradiance ¹) | |
| • Continuous operation | 144 W/m² |
| ¹) working distance = 50 mm |
Drawings
Dimensional drawing in mm: length = 90 mm; width = 30 mm
Pin assignments, M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-21-560 | Diffusor 40% 30x90x1 | for AL30x90 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-21-562 | Polarizer linear 30x90x0.18 | for AL30x90 and DL30x90, polarizing filter, neutral gray, self-adhesive |
| 1-21-563 | Polarizer linear 30x90x2 | for AL30x90, polarizing filter, neutral gray, screwable |
| protective covers | ||
| 1-21-561 | Clear cover 30x90x1 | for AL30x90, protective cover made of PMMA, screwable |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, IR850, directed, lf-size: 30x90 mm, M8-4pin, flashable by flash controller
Order number:
1-21-178
EAN:
4251692658499
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- multiple mounting options
- metal casing, optical material: PMMA
Technical data
| Light-emitting surface | 30 mm x 90 mm |
| Light colour | Infrared, 850 nm |
| Light design | Directed |
| Special feature | Flashable with flash controller |
| Operating voltage | For current source only! |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 130 g |
| Irradiance ¹) | |
| • Continuous operation | 269 W/m² |
| ¹) working distance = 50 mm |
Drawings
Dimensional drawing in mm: length = 90 mm; width = 30 mm
Pin assignments, M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-21-560 | Diffusor 40% 30x90x1 | for AL30x90 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-21-562 | Polarizer linear 30x90x0.18 | for AL30x90 and DL30x90, polarizing filter, neutral gray, self-adhesive |
| 1-21-563 | Polarizer linear 30x90x2 | for AL30x90, polarizing filter, neutral gray, screwable |
| protective covers | ||
| 1-21-561 | Clear cover 30x90x1 | for AL30x90, protective cover made of PMMA, screwable |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, red, directed, lf-size: 30x90 mm, M8-4pin, flashable by flash controller
Order number:
1-21-174
EAN:
4251692658451
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- multiple mounting options
- metal casing, optical material: PMMA
Technical data
| Light-emitting surface | 30 mm x 90 mm |
| Light colour | Red, 633 nm |
| Light design | Directed |
| Special feature | Flashable with flash controller |
| Operating voltage | For current source only! |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 130 g |
| Irradiance ¹) | |
| • Continuous operation | 177 W/m² |
| ¹) working distance = 50 mm |
Drawings
Dimensional drawing in mm: length = 90 mm; width = 30 mm
Pin assignments, M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-21-560 | Diffusor 40% 30x90x1 | for AL30x90 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-21-562 | Polarizer linear 30x90x0.18 | for AL30x90 and DL30x90, polarizing filter, neutral gray, self-adhesive |
| 1-21-563 | Polarizer linear 30x90x2 | for AL30x90, polarizing filter, neutral gray, screwable |
| protective covers | ||
| 1-21-561 | Clear cover 30x90x1 | for AL30x90, protective cover made of PMMA, screwable |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, green, directed, lf-size: 30x90 mm, M8-4pin, flashable by flash controller
Order number:
1-21-175
EAN:
4251692658468
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- multiple mounting options
- metal casing, optical material: PMMA
Technical data
| Light-emitting surface | 30 mm x 90 mm |
| Light colour | Grün, 530 nm |
| Light design | Directed |
| Special feature | Flashable with flash controller |
| Operating voltage | For current source only! |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 130 g |
Drawings
Dimensional drawing in mm: length = 90 mm; width = 30 mm
Pin assignments, M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-21-560 | Diffusor 40% 30x90x1 | for AL30x90 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-21-562 | Polarizer linear 30x90x0.18 | for AL30x90 and DL30x90, polarizing filter, neutral gray, self-adhesive |
| 1-21-563 | Polarizer linear 30x90x2 | for AL30x90, polarizing filter, neutral gray, screwable |
| protective covers | ||
| 1-21-561 | Clear cover 30x90x1 | for AL30x90, protective cover made of PMMA, screwable |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Title:
Short description:
area light, blue, directed, lf-size: 30x90 mm, M5-4pin, static / switchable
Order number:
1-21-602
EAN:
4251692658710
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug on the casing
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Light-emitting surface | 30 mm x 90 mm |
| Light colour | Blue, 470 nm |
| Light design | Directed |
| Operating voltage | 24 VDC (10 - 30 V) |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 115 g |
| Irradiance ¹) | |
| • Continuous operation | 194 W/m² |
| ¹) working distance = 50 mm |
Drawings
Dimensional drawing in mm: length = 90 mm; width = 30 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-21-560 | Diffusor 40% 30x90x1 | for AL30x90 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-21-562 | Polarizer linear 30x90x0.18 | for AL30x90 and DL30x90, polarizing filter, neutral gray, self-adhesive |
| 1-21-563 | Polarizer linear 30x90x2 | for AL30x90, polarizing filter, neutral gray, screwable |
| protective covers | ||
| 1-21-561 | Clear cover 30x90x1 | for AL30x90, protective cover made of PMMA, screwable |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
area light, white, directed, lf-size: 30x90 mm, M5-4pin, static / switchable
Order number:
1-21-603
EAN:
4251692658727
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug on the casing
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Light-emitting surface | 30 mm x 90 mm |
| Light colour | White, 5700 K |
| Light design | Directed |
| Operating voltage | 24 VDC (10 - 30 V) |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 115 g |
| Irradiance ¹) | |
| • Continuous operation | 144 W/m² |
| ¹) working distance = 50 mm |
Drawings
Dimensional drawing in mm: length = 90 mm; width = 30 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-21-560 | Diffusor 40% 30x90x1 | for AL30x90 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-21-562 | Polarizer linear 30x90x0.18 | for AL30x90 and DL30x90, polarizing filter, neutral gray, self-adhesive |
| 1-21-563 | Polarizer linear 30x90x2 | for AL30x90, polarizing filter, neutral gray, screwable |
| protective covers | ||
| 1-21-561 | Clear cover 30x90x1 | for AL30x90, protective cover made of PMMA, screwable |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
area light, IR850, directed, lf-size: 30x90 mm, M5-4pin, static / switchable
Order number:
1-21-604
EAN:
4251692658734
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug on the casing
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Light-emitting surface | 30 mm x 90 mm |
| Light colour | Infrared, 850 nm |
| Light design | Directed |
| Operating voltage | 24 VDC (10 - 30 V) |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 115 g |
| Irradiance ¹) | |
| • Continuous operation | 269 W/m² |
| ¹) working distance = 50 mm |
Drawings
Dimensional drawing in mm: length = 90 mm; width = 30 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-21-560 | Diffusor 40% 30x90x1 | for AL30x90 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-21-562 | Polarizer linear 30x90x0.18 | for AL30x90 and DL30x90, polarizing filter, neutral gray, self-adhesive |
| 1-21-563 | Polarizer linear 30x90x2 | for AL30x90, polarizing filter, neutral gray, screwable |
| protective covers | ||
| 1-21-561 | Clear cover 30x90x1 | for AL30x90, protective cover made of PMMA, screwable |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
area light, red, directed, lf-size: 30x90 mm, M5-4pin, static / switchable
Order number:
1-21-600
EAN:
4251692658703
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- lighting controller integrated in casing
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug on the casing
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Light-emitting surface | 30 mm x 90 mm |
| Light colour | Red, 633 nm |
| Light design | Directed |
| Operating voltage | 24 VDC (10 - 30 V) |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 115 g |
| Irradiance ¹) | |
| • Continuous operation | 177 W/m² |
| ¹) working distance = 50 mm |
Drawings
Dimensional drawing in mm: length = 90 mm; width = 30 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| diffusers | ||
| 1-21-560 | Diffusor 40% 30x90x1 | for AL30x90 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-21-562 | Polarizer linear 30x90x0.18 | for AL30x90 and DL30x90, polarizing filter, neutral gray, self-adhesive |
| 1-21-563 | Polarizer linear 30x90x2 | for AL30x90, polarizing filter, neutral gray, screwable |
| protective covers | ||
| 1-21-561 | Clear cover 30x90x1 | for AL30x90, protective cover made of PMMA, screwable |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
area light, blue, directed, lf-size: 60x60 mm, M8-4pin, flashable by flash controller
Order number:
1-21-192
EAN:
4251692658574
Downloads:
Characteristics
- LED area light with direct illumination
- homogeneous illumination
- safe operation due to vicolux® smart light Controller (e.g. DLC3005)
- connection: cable with M8 connector
- multiple mounting options
- metal casing, optical material: PMMA
Technical data
| Light-emitting surface | 60 mm x 60 mm |
| Light colour | Blue, 470 nm |
| Light design | Directed |
| Special feature | Flashable with flash controller |
| Operating voltage | For current source only! |
| Degree of protection | IP50 |
| Safety class | Class III, safety extra low voltage (SELV) |
| Risk group (DIN EN 62471) | Exempt |
| Ambient temperature | -10°C to +45°C |
| Housing material | Aluminium black anodised |
| Weight | 120 g |
| Irradiance ¹) | |
| • Continuous operation | 128 W/m² |
| ¹) working distance = 50 mm |
Drawings
Dimensional drawing in mm: length = 60 mm; width = 60 mm
Pin assignments, M8 connector
Can be combined with
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting systems | ||
| 1-20-070 | Adjustable holder xL60 | for xL60x60, stepless rotatable and swiveling mounting, incl. screws |
| diffusers | ||
| 1-20-060 | Diffusor 40% 60x60x1 | for AL60x60 diffuser plate made of PMMA, screwable |
| Polarisers for Area Lights | ||
| 1-20-062 | Polarizer linear 60x60x0.18 | for AL60x60 and DL60x60, polarizing filter, neutral gray, self-adhesive |
| protective covers | ||
| 1-20-061 | Clear cover 60x60x1 | for AL60x60, protective cover made of PMMA, screwable |
| Connection cable M8-4pin | ||
| 1-11-611 | Cable-M8-4p-5A-straight-1m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-612 | Cable-M8-4p-5A-straight-2m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-613 | Cable-M8-4p-5A-straight-3m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-614 | Cable-M8-4p-5A-straight-5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-609 | Cable-M8-4p-4A-straight-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin straight socket to free cable end |
| 1-11-605 | Cable-M8-4p-4A-angled-2m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| 1-11-604 | Cable-M8-4p-4A-angled-5m | 4x0.25mm², 4A, 60V, PUR, IP67, M8-4pin angled socket to free cable end |
| Extension cable M8-4pin | ||
| 1-11-093 | Extension cable-M8-4p-5A-0.6m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-094 | Extension cable-M8-4p-5A-1.5m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
| 1-11-095 | Extension cable-M8-4p-5A-3.0m | 4x0.5mm², 5A, 30V, PUR, IP67, M8-4pin straight socket to M8-4pin straight plug |
Load more products..
