vicotar® M42

Vergrößernd, hochauflösend bis 30 Mpixel, große Sensorformate

Telezentrisches

Objektiv

Objektfeld-

Durchmesser

Bildfeld-

Durchmesser

Arbeitsabstand

Sensor

TO20,3/28,4-102-F-WN

20,3 mm

28,4 mm

102 mm

max. Typ DX

TO14,2/28,4-77-F-WN

14,2 mm

28,4 mm

86 mm

max. Typ DX

TO10,5/43,4-66-F-WN

10,5 mm

43,4 mm

66 mm

max. Typ 35 mm

TO8,7/43,4-64-F-WN

8,7 mm

43,4 mm

64 mm

max. Typ 35 mm

TO5,9/43,4-48-F-WN

5,9 mm

43,4 mm

48 mm

max. Typ 35 mm

TO4,5/43,4-48-F-WN

4,5 mm

43,4 mm

48 mm

max. Typ 35 mm

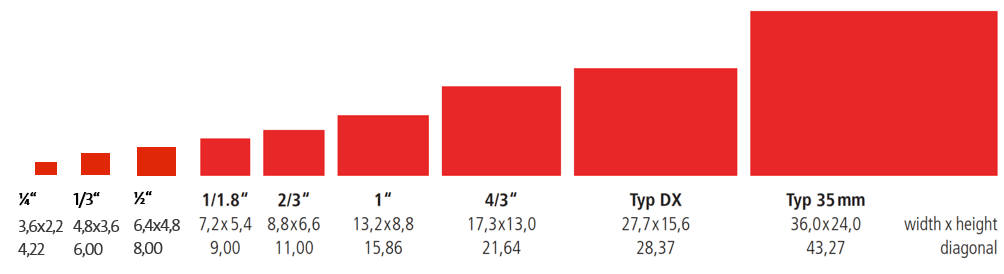

Gängige Formate von Kamerasensoren

Produktansicht
Produktinformationen
Kurzbeschreibung:
bar light, IR850, diffuse, lf-size: 30 mm x 180 mm, static/switchable
Bestellnummer:
1-43-407
Downloads:
Details anzeigen
Eigenschaften
  • LED bar light, diffuse illumination
  • Homogeneous illumination
  • Build-in Controller
  • Continuous or pulsed operation
  • Brightness pre-set, Flash duration corresponds to Pulse-length
  • Connection cable with M8 connector
  • Metal casing, optical material: PMMA
Zeichnungen
The dimensions given are in millimetres.
Pin assignment of the M8 connector
Kurzbeschreibung:
bar light, red, diffuse, lf-size: 30 mm x 240 mm, static/switchable
Bestellnummer:
1-43-408
Downloads:
Details anzeigen
Eigenschaften
  • LED bar light, diffuse illumination
  • Homogeneous illumination
  • Build-in Controller
  • Continuous or pulsed operation
  • Brightness pre-set, Flash duration corresponds to Pulse-length
  • Connection cable with M8 connector
  • Metal casing, optical material: PMMA
Zeichnungen
The dimensions given are in millimetres.
Pin assignment of the M8 connector
Kurzbeschreibung:
bar light, blue, diffuse, lf-size: 30 mm x 240 mm, static/switchable
Bestellnummer:
1-43-409
Downloads:
Details anzeigen
Eigenschaften
  • LED bar light, diffuse illumination
  • Homogeneous illumination
  • Build-in Controller
  • Continuous or pulsed operation
  • Brightness pre-set, Flash duration corresponds to Pulse-length
  • Connection cable with M8 connector
  • Metal casing, optical material: PMMA
Zeichnungen
The dimensions given are in millimetres.
Pin assignment of the M8 connector
Kurzbeschreibung:
bar light, white, diffuse, lf-size: 30 mm x 240 mm, static/switchable
Bestellnummer:
1-43-410
Downloads:
Details anzeigen
Eigenschaften
  • LED bar light, diffuse illumination
  • Homogeneous illumination
  • Build-in Controller
  • Continuous or pulsed operation
  • Brightness pre-set, Flash duration corresponds to Pulse-length
  • Connection cable with M8 connector
  • Metal casing, optical material: PMMA
Zeichnungen
The dimensions given are in millimetres.
Pin assignment of the M8 connector
Kurzbeschreibung:
bar light, IR850, diffuse, lf-size: 30 mm x 240 mm, static/switchable
Bestellnummer:
1-43-411
Downloads:
Details anzeigen
Eigenschaften
  • LED bar light, diffuse illumination
  • Homogeneous illumination
  • Build-in Controller
  • Continuous or pulsed operation
  • Brightness pre-set, Flash duration corresponds to Pulse-length
  • Connection cable with M8 connector
  • Metal casing, optical material: PMMA
Zeichnungen
The dimensions given are in millimetres.
Pin assignment of the M8 connector
