Accessory 90° Deflection - Deflection mirror 90-56
Characteristics
- deflection of the beam path by 90 degrees
- for easy installation in narrow installation conditions
- attachable with locking
- rotary and fixable version
- robust housing, dustproof, ideal for industrial applications
Technical data
| Deflecting element | Half-cube prism |
| Put on diameter | 56 mm |
| Free visual field | 38 mm x 38 mm |
| Shortening of the working distance | 28.3 mm |
| Housing material | Aluminium, black anodised |
| Optical material | Glass |
| Dimensions | Length: 55 mm Diameter: 66 mm |
| Mounting options | 2 x M5 mounting holes |
| Attachment to the lens | 4 Grub screws arranged at 90° angles |
| Weight | 320 g |
| Degree of protection | IP 50 |
| Ambient temperature | - 10°C ... 55°C |
| Can be combined with: | |
| Telecentric light | TZB51 series |
| Telecentric optic | TOB42 series |
Drawings

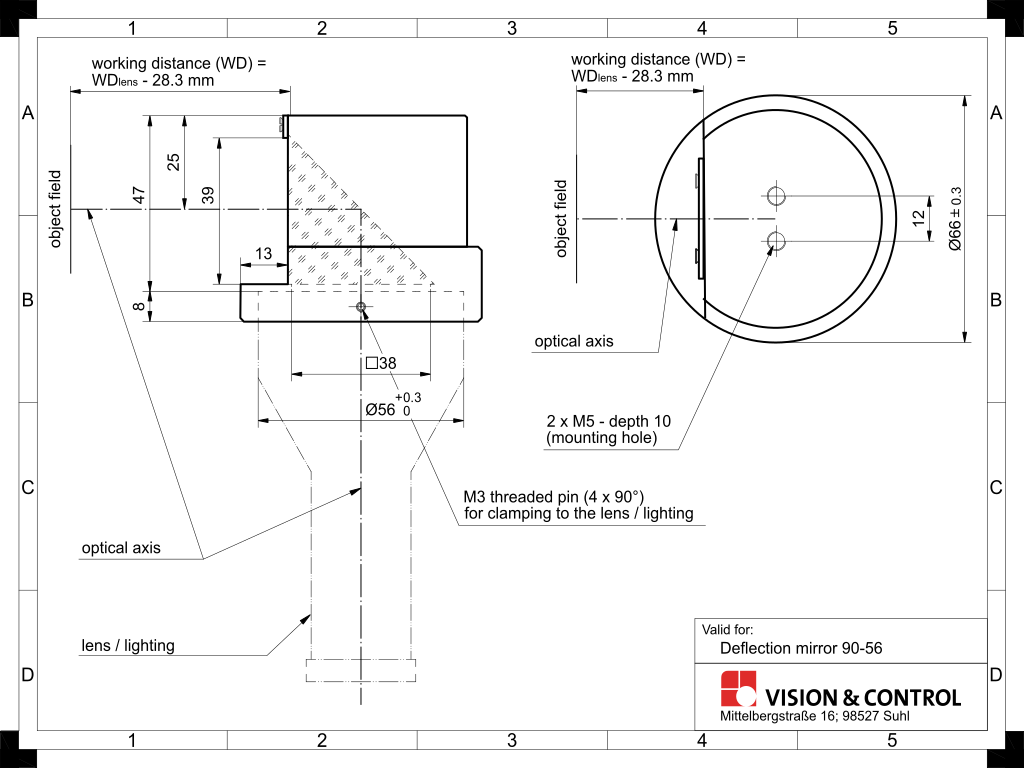

Dimensional drawing in mm
