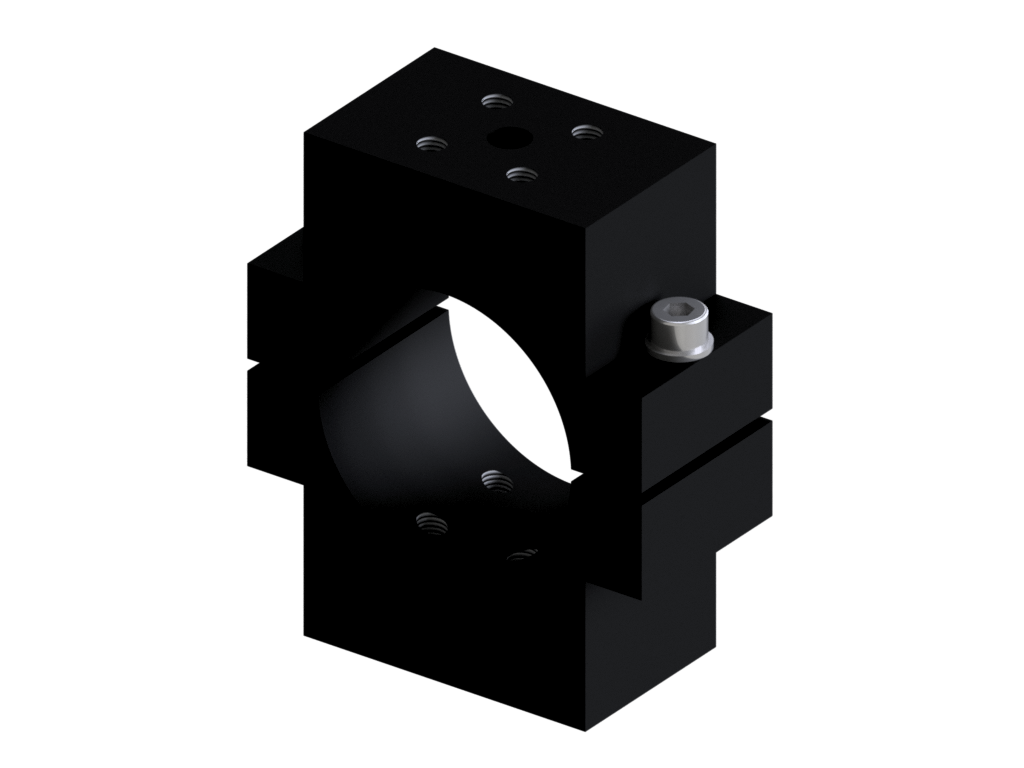

Lens Holder - Lens Holder d45 wide

Lens Holder d45 wide
Short description:

Holder for telecentric lenses and lightings with d = 45 mm, width = 32 mm

Order number:
2-91-330
Downloads:
Characteristics

  • Holder for lenses and telecentric lights
  • Robust mount for high mechanical loads
  • Support long lenses for vibration-free attachment
  • Fixation of the optical adjustment under extreme mechanical loads
  • Adaptable to various attachment situations such as direct attachment to the machine frame, attachment to a separate rail with attachment features or combination of rail and machine

Technical data
MaterialAluminium, black anodised
Weight264 g
Clamping diameter45 mm
Clamping length 32 mm
Can be combined with:
Telecentric lightTZB38 series
Telecentric opticTO66 series
Drawings
Dimensional drawing in mm
