Lens Holder - Lens Holder d25

Lens Holder d25
Short description:

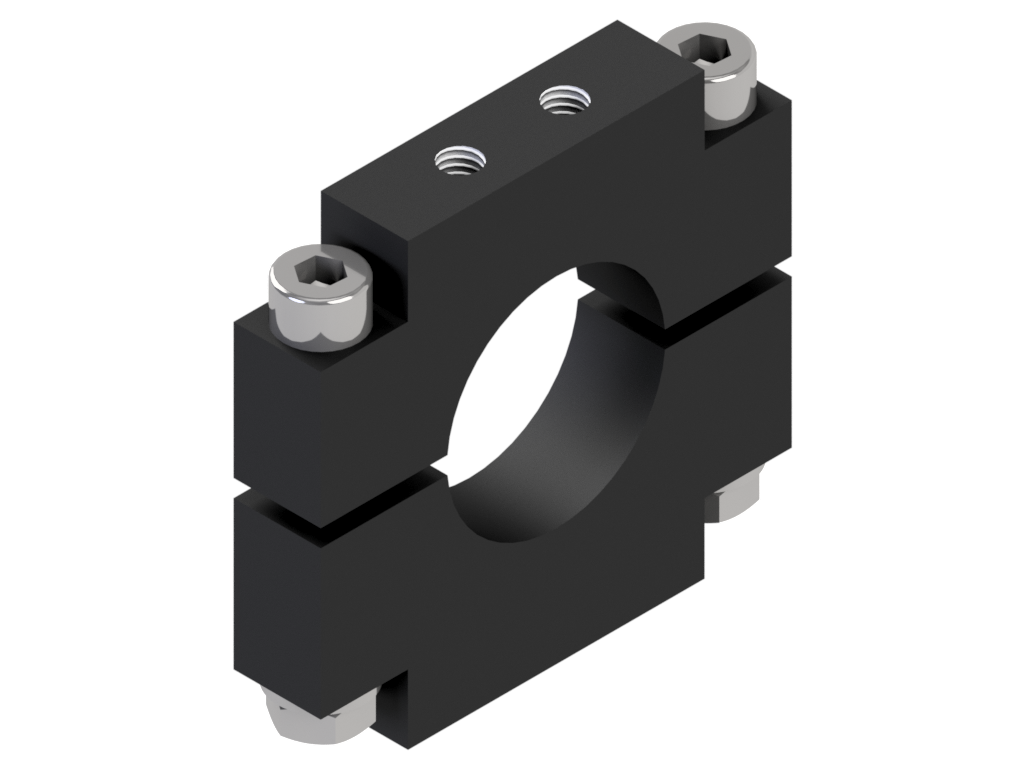

Holder for telecentric lenses and lightings with d = 25 mm

Order number:
2-90-128
Downloads:
Characteristics

  • Holder for lenses and telecentric lights
  • Robust mount for high mechanical loads
  • Support long lenses for vibration-free attachment
  • Fixation of the optical adjustment under extreme mechanical loads
  • Adaptable to various attachment situations such as direct attachment to the machine frame, attachment to a separate rail with attachment features or combination of rail and machine

Technical data
MaterialAluminium, black anodised
Weight61 g
Clamping diameter25 mm
Clamping length 10 mm
Can be combined with:
Telecentric opticT80 series
Drawings
Dimensional drawing in mm
