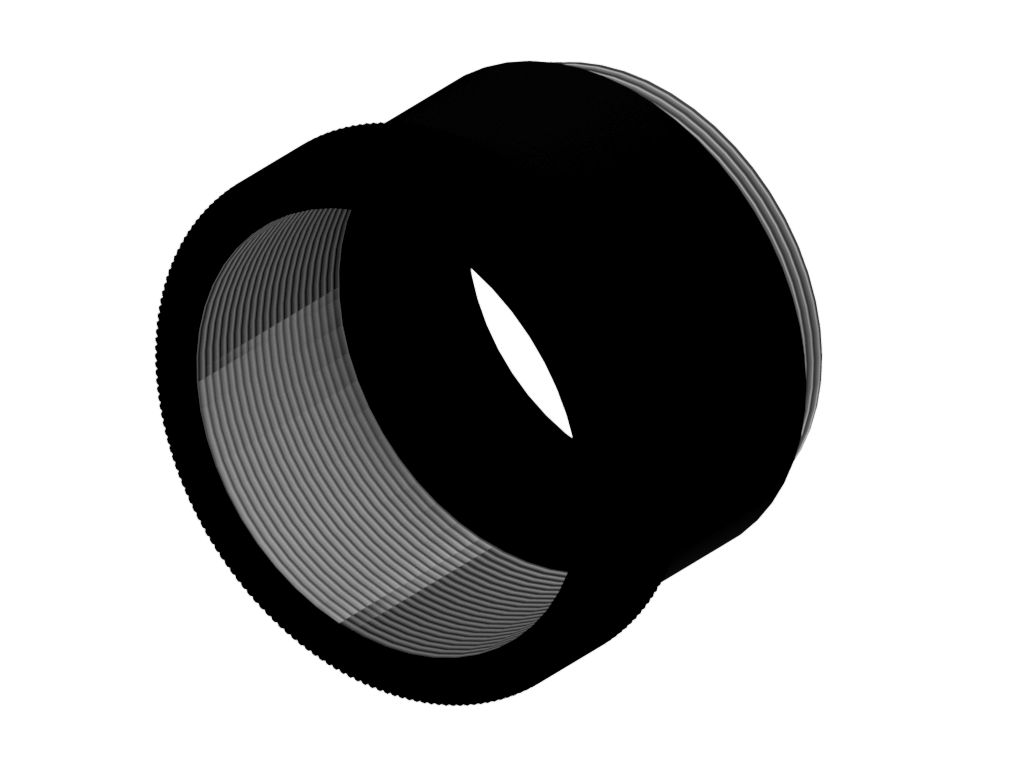

Optics accessories - Thread adapter M42x1-M42x1-L29
Characteristics
- Thread adapter for adjusting the flange focal distance or connection thread
- light and robust aluminium holder with high dimensional stability
- reduces the flange focal length from 45.46 mm to 16 mm
Technical data
| Material (Housing) | Aluminum, matte black (anti-reflective) |
| Dimensions | |
| Outer diameter | 50 mm |
| Inner diameter | 35 mm |
| Thickness | 29.46 mm |
| Internal thread | M42 x 1 |
| External thread | M42 x 1 |
| Change in optical path length | 16 mm |
| Mounting | Screw adapter |
Drawings

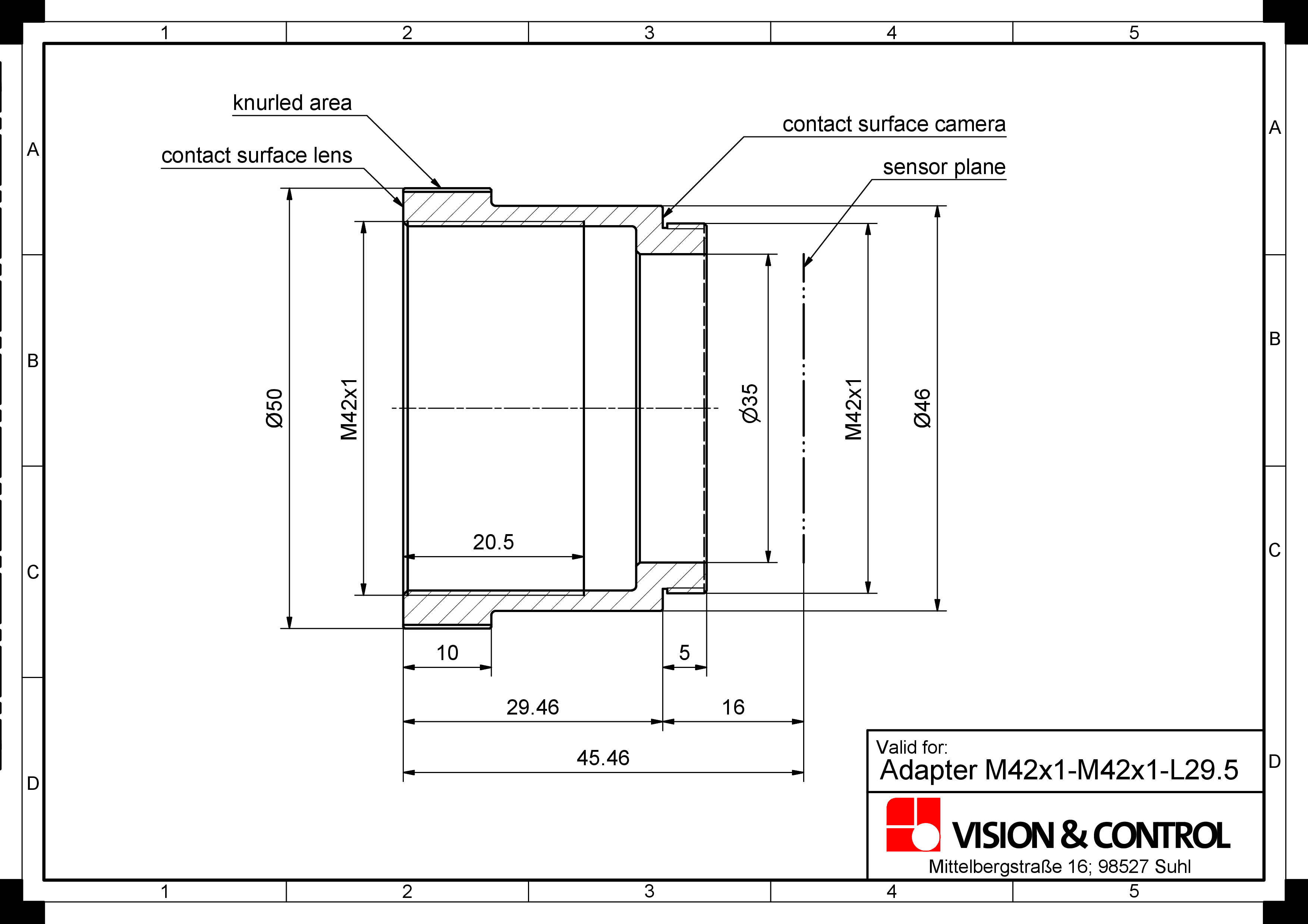

Dimensional drawing in mm
