Optics accessories - Thread adapter C-Mount-M42
Characteristics
- Thread adapter for adjusting the flange focal distance or connection thread
- light and robust aluminium holder with high dimensional stability
- extend the flange focal length from 17,526 mm to 45,46 mm
Technical data
| Material (Housing) | Aluminum, matte black (anti-reflective) |
| Dimensions | |
| Outer diameter | 50 mm |
| Inner diameter | 36 mm |
| Thickness | 37 mm |
| Internal thread | C-Mount |
| External thread | M42 x 1 |
| Change in optical path length | -27.934 mm |
| Mounting | Screw adapter |
Drawings

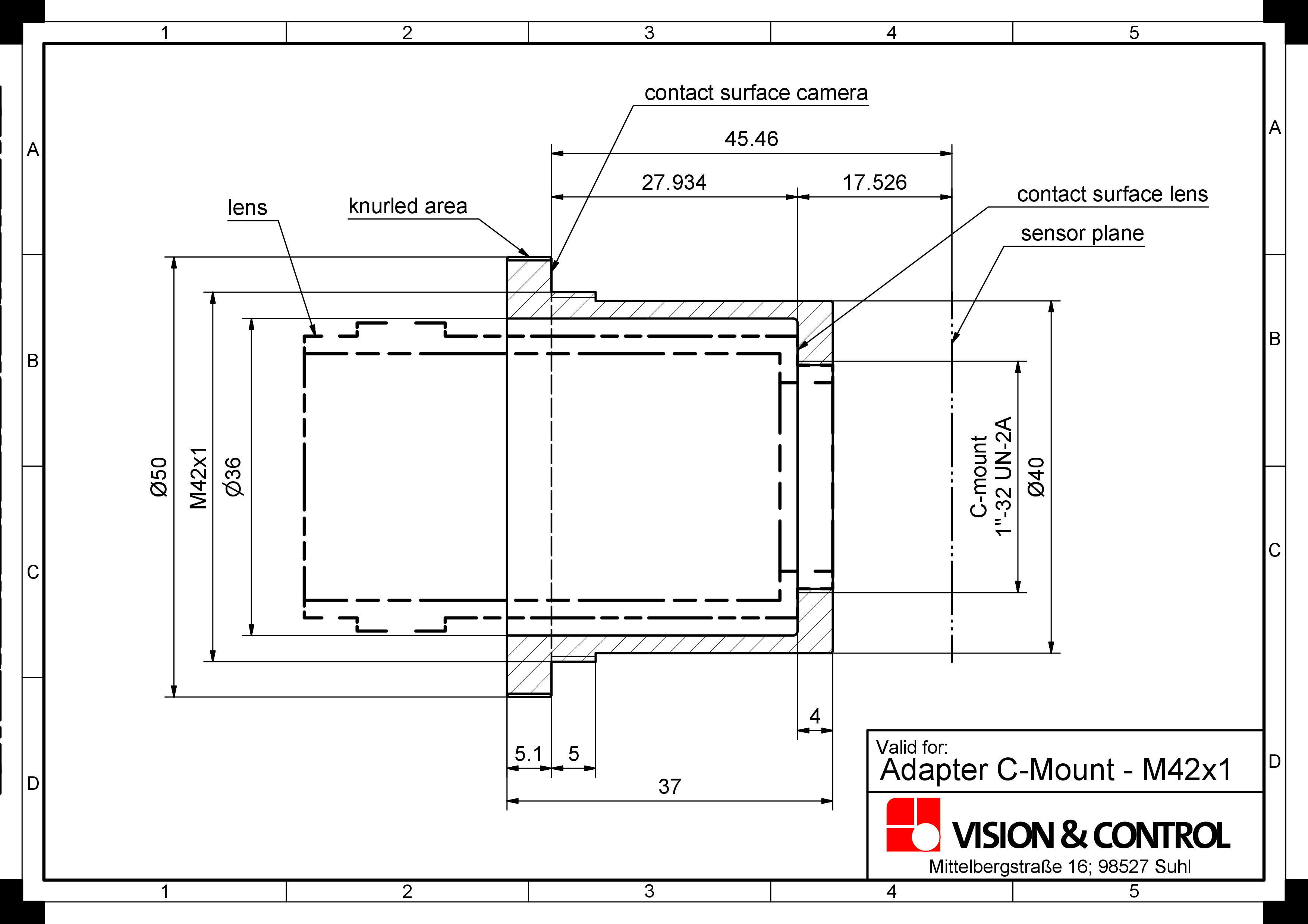

Dimensional drawing in mm
