Title:
Short description:
bar light, white, directed, lf-size: 14 mm x 75 mm, static/switchable, external
Order number:
1-16-430
EAN:
4251692672129
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 75 mm |
| Light colour | White, 5700 K |
| Light design | Directed |
| Irradiance | 18 W/m² |
| Illumination | 6000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C to +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 43 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | III, Schutzkleinspannung (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings

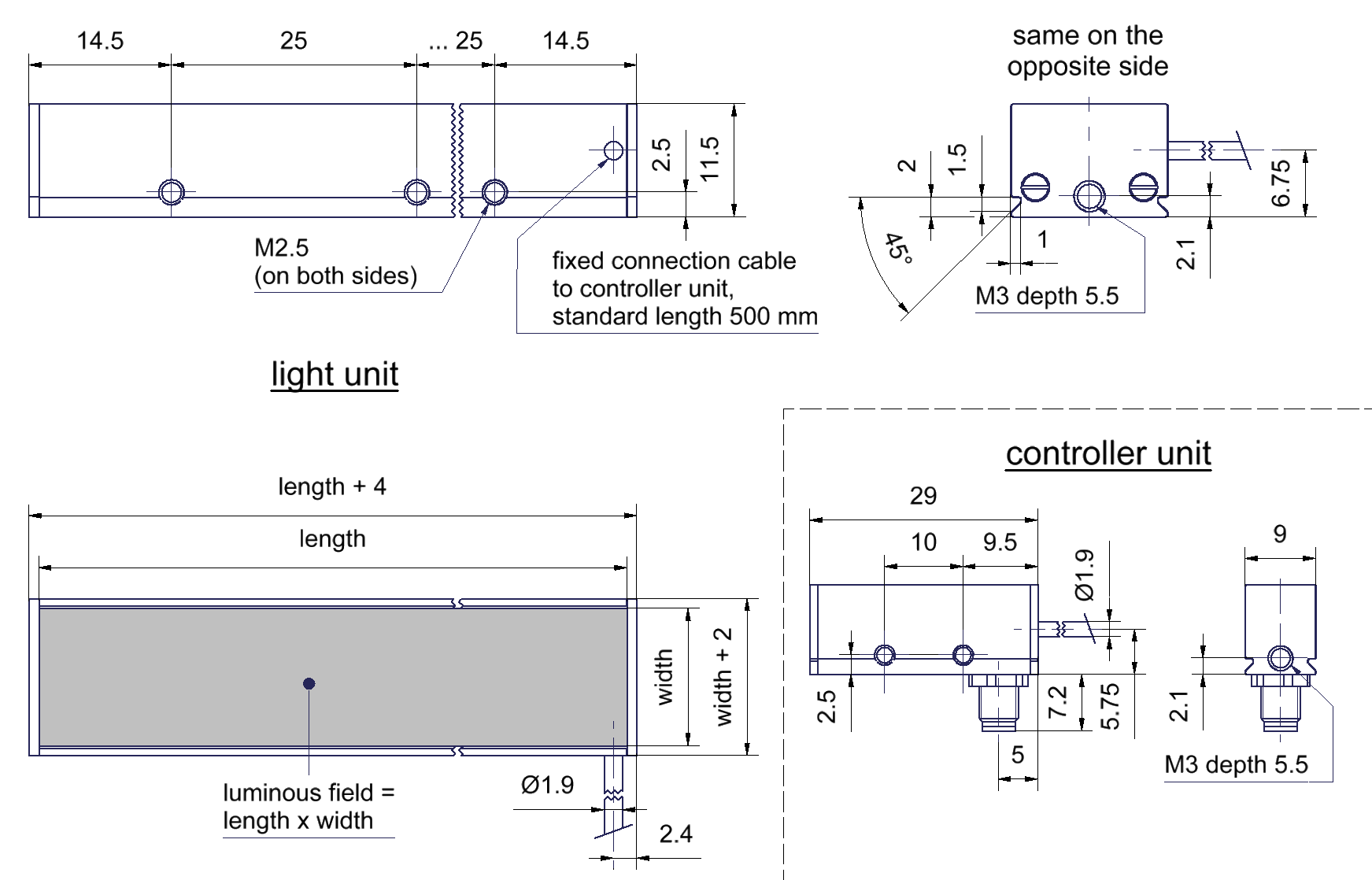

Dimensional drawing in mm: length = 75 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-923 | Polarizer 14x75, linear | for LxL14x75 ,400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, IR850, directed, lf-size: 14 mm x 75 mm, static/switchable, external
Order number:
1-16-431
EAN:
4251692672136
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 75 mm |
| Light colour | IR, 850 nm |
| Light design | gerichtet |
| Irradiance | 46 W/m² |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 43 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | Class III, safety extra low voltage (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 75 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-923 | Polarizer 14x75, linear | for LxL14x75 ,400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, red, directed, lf-size: 14 mm x 75 mm, static/switchable, external
Order number:
1-16-427
EAN:
4251692672099
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 75 mm |
| Light colour | Red, 633 nm |
| Light design | Directed |
| Irradiance | 96 W/m² |
| Illumination | 12000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C to +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 43 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | III, Schutzkleinspannung (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 75 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-923 | Polarizer 14x75, linear | for LxL14x75 ,400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, blue, directed, lf-size: 14 mm x 100 mm, static/switchable, external
Order number:
1-16-437
EAN:
4251692672167
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 100 mm |
| Light colour | Blue, 470 nm |
| Light design | gerichtet |
| Irradiance | 104 W/m² |
| Illumination | 8000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 50 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | Class III, safety extra low voltage (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 100 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-924 | Polarizer 14x100, linear | for LxL14x100, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, white, directed, lf-size: 14 mm x 100 mm, static/switchable, external
Order number:
1-16-438
EAN:
4251692672174
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 100 mm |
| Light colour | White, 5700 K |
| Light design | Directed |
| Irradiance | 18 W/m² |
| Illumination | 6000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C to +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 50 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | III, Schutzkleinspannung (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 100 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-924 | Polarizer 14x100, linear | for LxL14x100, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, IR850, directed, lf-size: 14 mm x 100 mm, static/switchable, external
Order number:
1-16-439
EAN:
4251692672181
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 100 mm |
| Light colour | IR, 850 nm |
| Light design | gerichtet |
| Irradiance | 46 W/m² |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 50 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | Class III, safety extra low voltage (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 100 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-924 | Polarizer 14x100, linear | for LxL14x100, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, red, directed, lf-size: 14 mm x 100 mm, static/switchable, external
Order number:
1-16-435
EAN:
4251692672143
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 100 mm |
| Light colour | Red, 633 nm |
| Light design | Directed |
| Irradiance | 96 W/m² |
| Illumination | 12000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C to +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 50 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | III, Schutzkleinspannung (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 100 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-924 | Polarizer 14x100, linear | for LxL14x100, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, blue, directed, lf-size: 14 mm x 125 mm, static/switchable, external
Order number:
1-16-445
EAN:
4251692672211
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 125 mm |
| Light colour | Blue, 470 nm |
| Light design | gerichtet |
| Irradiance | 104 W/m² |
| Illumination | 8000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 57 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | Class III, safety extra low voltage (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 125 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-925 | Polarizer 14x125, linear | for LxL14x125, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, white, directed, lf-size: 14 mm x 125 mm, static/switchable, external
Order number:
1-16-446
EAN:
4251692672228
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 125 mm |
| Light colour | White, 5700 K |
| Light design | Directed |
| Irradiance | 18 W/m² |
| Illumination | 6000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C to +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 57 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | III, Schutzkleinspannung (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 125 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-925 | Polarizer 14x125, linear | for LxL14x125, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, IR850, directed, lf-size: 14 mm x 125 mm, static/switchable, external
Order number:
1-16-447
EAN:
4251692672235
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 125 mm |
| Light colour | IR, 850 nm |
| Light design | gerichtet |
| Irradiance | 46 W/m² |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 57 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | Class III, safety extra low voltage (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 125 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-925 | Polarizer 14x125, linear | for LxL14x125, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, red, directed, lf-size: 14 mm x 125 mm, static/switchable, external
Order number:
1-16-443
EAN:
4251692672198
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 125 mm |
| Light colour | Red, 633 nm |
| Light design | Directed |
| Irradiance | 96 W/m² |
| Illumination | 12000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C to +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 57 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | III, Schutzkleinspannung (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 125 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-925 | Polarizer 14x125, linear | for LxL14x125, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, blue, directed, lf-size: 14 mm x 150 mm, static/switchable, external
Order number:
1-16-453
EAN:
4251692672266
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 150 mm |
| Light colour | Blue, 470 nm |
| Light design | gerichtet |
| Irradiance | 104 W/m² |
| Illumination | 8000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 64 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | Class III, safety extra low voltage (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 150 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-926 | Polarizer 14x150, linear | for LxL14x150, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, white, directed, lf-size: 14 mm x 150 mm, static/switchable, external
Order number:
1-16-454
EAN:
4251692672273
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 150 mm |
| Light colour | White, 5700 K |
| Light design | Directed |
| Irradiance | 18 W/m² |
| Illumination | 6000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C to +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 64 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | III, Schutzkleinspannung (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 150 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-926 | Polarizer 14x150, linear | for LxL14x150, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, IR850, directed, lf-size: 14 mm x 150 mm, static/switchable, external
Order number:
1-16-455
EAN:
4251692672280
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 150 mm |
| Light colour | IR, 850 nm |
| Light design | gerichtet |
| Irradiance | 46 W/m² |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 64 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | Class III, safety extra low voltage (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 150 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-926 | Polarizer 14x150, linear | for LxL14x150, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, red, directed, lf-size: 14 mm x 150 mm, static/switchable, external
Order number:
1-16-451
EAN:
4251692672242
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 150 mm |
| Light colour | Red, 633 nm |
| Light design | Directed |
| Irradiance | 96 W/m² |
| Illumination | 12000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C to +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 64 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | III, Schutzkleinspannung (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 150 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-926 | Polarizer 14x150, linear | for LxL14x150, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Load more products..
