Title:
Short description:
bar light, green, directed, lf-size: 14 mm x 200 mm, static/switchable, external
Order number:
1-34-714
EAN:
4251692677728
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 200 mm |
| Light colour | Green, 523 nm |
| Light design | Directed |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 78 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 200 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-928 | Polarizer 14x200, linear | for LxL14x200, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, blue, directed, lf-size: 14 mm x 250 mm, static/switchable, external
Order number:
1-34-629
EAN:
4251692677230
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 250 mm |
| Light colour | Blau, 470 nm |
| Light design | Directed |
| Irradiance | 104 W/m² |
| Illumination | 8000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 92 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 250 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-930 | Polarizer 14x250, linear | for LxL14x250, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, white, directed, lf-size: 14 mm x 250 mm, static/switchable, external
Order number:
1-34-630
EAN:
4251692677247
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 250 mm |
| Light colour | White, 5700 K |
| Light design | Directed |
| Irradiance | 18 W/m² |
| Illumination | 6000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 92 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 250 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-930 | Polarizer 14x250, linear | for LxL14x250, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, IR850, directed, lf-size: 14 mm x 250 mm, static/switchable, external
Order number:
1-34-631
EAN:
4251692677254
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 250 mm |
| Light colour | Infrared, 850 nm |
| Light design | Directed |
| Irradiance | 46 W/m² |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 92 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 250 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-930 | Polarizer 14x250, linear | for LxL14x250, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, red, directed, lf-size: 14 mm x 250 mm, static/switchable, external
Order number:
1-34-628
EAN:
4251692677223
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 250 mm |
| Light colour | Red, 633 nm |
| Light design | Directed |
| Irradiance | 96 W/m² |
| Illumination | 12000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 92 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 250 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-930 | Polarizer 14x250, linear | for LxL14x250, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, green, directed, lf-size: 14 mm x 250 mm, static/switchable, external
Order number:
1-34-715
EAN:
4251692677735
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 250 mm |
| Light colour | Green, 523 nm |
| Light design | Directed |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 92 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 250 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-930 | Polarizer 14x250, linear | for LxL14x250, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, blue, directed, lf-size: 14 mm x 25 mm, static/switchable, external
Order number:
1-16-413
EAN:
4251692672013
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 25 mm |
| Light colour | Blue, 470 nm |
| Light design | gerichtet |
| Irradiance | 104 W/m² |
| Illumination | 8000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 29 g |
| Risk group (DIN EN 62471) | Exempt |
| Safety class | III, Schutzkleinspannung (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings

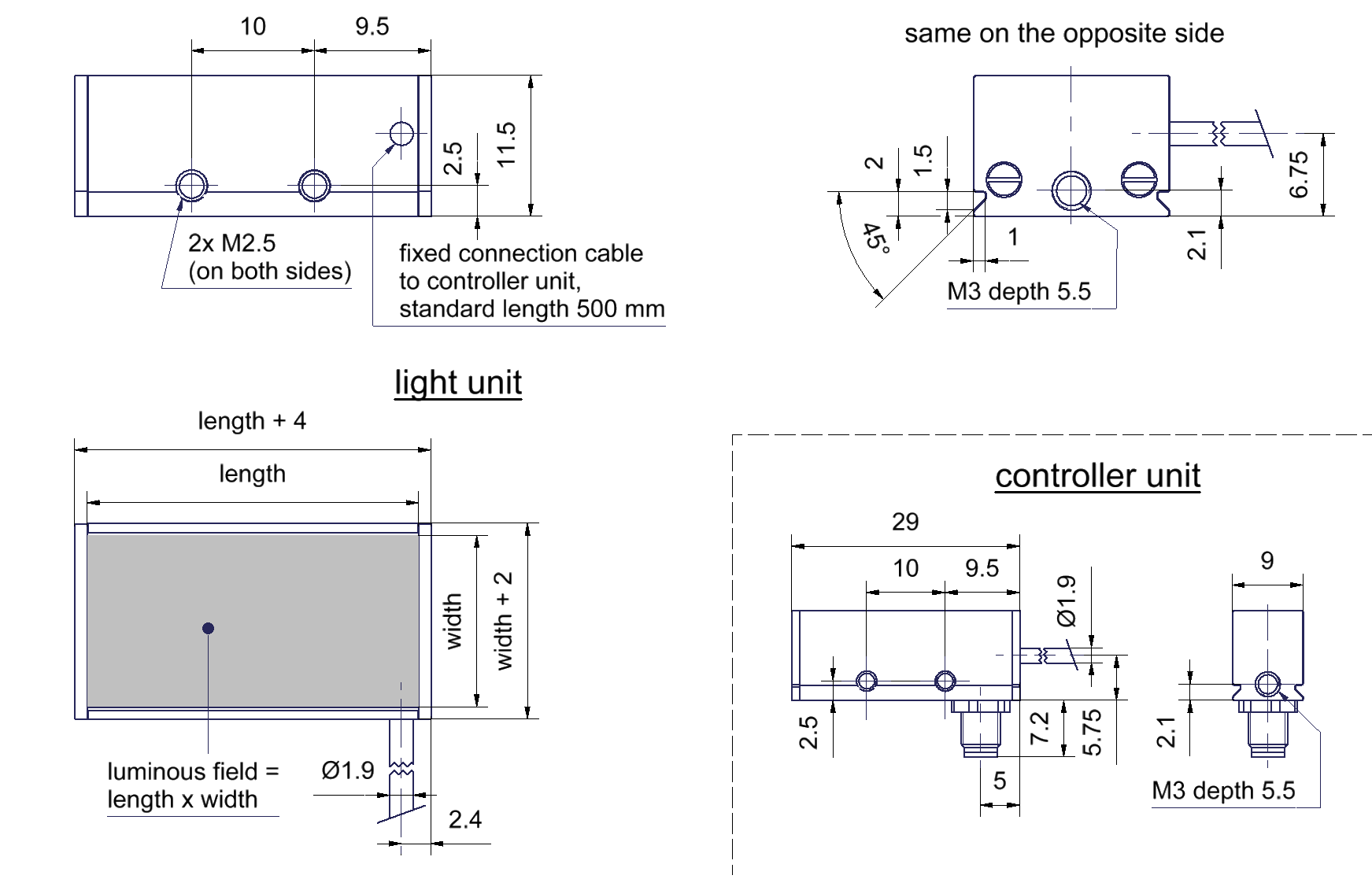

Dimensional drawing in mm: length = 25 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-921 | Polarizer 14x25, linear | for LxL14x25, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, white, directed, lf-size: 14 mm x 25 mm, static/switchable, external
Order number:
1-16-414
EAN:
4251692672020
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 25 mm |
| Light colour | White, 5700 K |
| Light design | Directed |
| Irradiance | 18 W/m² |
| Illumination | 6000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C to +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 29 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | III, Schutzkleinspannung (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 25 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-921 | Polarizer 14x25, linear | for LxL14x25, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, IR850, directed, lf-size: 14 mm x 25 mm, static/switchable, external
Order number:
1-16-415
EAN:
4251692672037
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 25 mm |
| Light colour | Infrared, 850 nm |
| Light design | gerichtet |
| Irradiance | 46 W/m² |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 29 g |
| Risk group (DIN EN 62471) | Exempt |
| Safety class | III, Schutzkleinspannung (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 25 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-921 | Polarizer 14x25, linear | for LxL14x25, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, red, directed, lf-size: 14 mm x 25 mm, static/switchable, external
Order number:
1-16-411
EAN:
4251692671993
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 25 mm |
| Light colour | Red, 633 nm |
| Light design | Directed |
| Irradiance | 96 W/m² |
| Illumination | 12000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C to +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 29 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | III, Schutzkleinspannung (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 25 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-921 | Polarizer 14x25, linear | for LxL14x25, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, blue, directed, lf-size: 14 mm x 50 mm, static/switchable, external
Order number:
1-16-421
EAN:
4251692672068
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 50 mm |
| Light colour | Blue, 470 nm |
| Light design | gerichtet |
| Irradiance | 104 W/m² |
| Illumination | 8000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 36 g |
| Risk group (DIN EN 62471) | Exempt |
| Safety class | III, Schutzkleinspannung (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 50 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-922 | Polarizer 14x50, linear | for LxL14x50, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, white, directed, lf-size: 14 mm x 50 mm, static/switchable, external
Order number:
1-16-422
EAN:
4251692672075
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 50 mm |
| Light colour | White, 5700 K |
| Light design | Directed |
| Irradiance | 18 W/m² |
| Illumination | 6000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C to +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 36 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | III, Schutzkleinspannung (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 50 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-922 | Polarizer 14x50, linear | for LxL14x50, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, IR850, directed, lf-size: 14 mm x 50 mm, static/switchable, external
Order number:
1-16-423
EAN:
4251692672082
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 50 mm |
| Light colour | IR, 850 nm |
| Light design | gerichtet |
| Irradiance | 46 W/m² |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 36 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | Class III, safety extra low voltage (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 50 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-922 | Polarizer 14x50, linear | for LxL14x50, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, red, directed, lf-size: 14 mm x 50 mm, static/switchable, external
Order number:
1-16-419
EAN:
4251692672044
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 50 mm |
| Light colour | Red, 633 nm |
| Light design | Directed |
| Irradiance | 96 W/m² |
| Illumination | 12000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C to +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 36 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | III, Schutzkleinspannung (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 50 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-922 | Polarizer 14x50, linear | for LxL14x50, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, blue, directed, lf-size: 14 mm x 75 mm, static/switchable, external
Order number:
1-16-429
EAN:
4251692672112
Actual Notice:
Not for new developmentsPlease use the revised variant "-a" for new developments.
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
Technical data
| Luminous field | 14 mm x 75 mm |
| Light colour | Blue, 470 nm |
| Light design | gerichtet |
| Irradiance | 104 W/m² |
| Illumination | 8000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 43 g |
| Risk group (DIN EN 62471) | Risk group 0 (exempt group) |
| Safety class | Class III, safety extra low voltage (SELV) |
Notices
For further information, please contact your personal contact in our sales department.
Drawings
Dimensional drawing in mm: length = 75 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-923 | Polarizer 14x75, linear | for LxL14x75 ,400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Load more products..
