Title:
Short description:
bar light, green, directed, lf-size: 14 mm x 25 mm, static/switchable, external
Order number:
1-34-708
EAN:
4251692677667
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 25 mm |
| Light colour | Green, 523 nm |
| Light design | Directed |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 29 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings

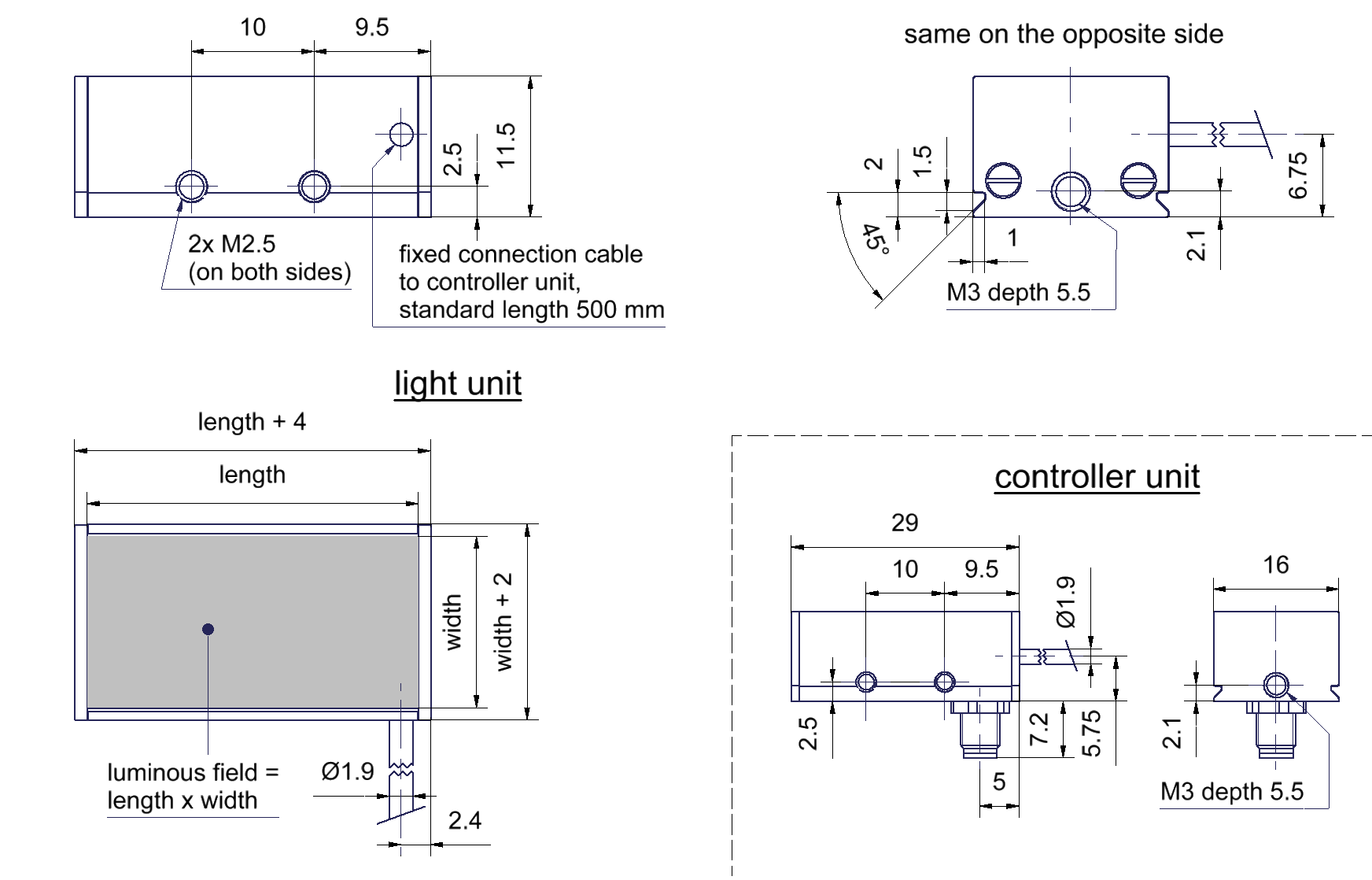

Dimensional drawing in mm: length = 25 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-921 | Polarizer 14x25, linear | for LxL14x25, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, blue, directed, lf-size: 14 mm x 50 mm, static/switchable, external
Order number:
1-34-605
EAN:
4251692676998
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 50 mm |
| Light colour | Blau, 470 nm |
| Light design | Directed |
| Irradiance | 104 W/m² |
| Illumination | 8000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 36 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 50 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-922 | Polarizer 14x50, linear | for LxL14x50, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, white, directed, lf-size: 14 mm x 50 mm, static/switchable, external
Order number:
1-34-606
EAN:
4251692677001
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 50 mm |
| Light colour | White, 5700 K |
| Light design | Directed |
| Irradiance | 18 W/m² |
| Illumination | 6000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 36 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 50 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-922 | Polarizer 14x50, linear | for LxL14x50, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, IR850, directed, lf-size: 14 mm x 50 mm, static/switchable, external
Order number:
1-34-607
EAN:
4251692677018
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 50 mm |
| Light colour | Infrared, 850 nm |
| Light design | Directed |
| Irradiance | 46 W/m² |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 36 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 50 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-922 | Polarizer 14x50, linear | for LxL14x50, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, red, directed, lf-size: 14 mm x 50 mm, static/switchable, external
Order number:
1-34-604
EAN:
4251692676981
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 50 mm |
| Light colour | Red, 633 nm |
| Light design | Directed |
| Irradiance | 96 W/m² |
| Illumination | 12000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 36 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 50 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-922 | Polarizer 14x50, linear | for LxL14x50, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, green, directed, lf-size: 14 mm x 50 mm, static/switchable, external
Order number:
1-34-709
EAN:
4251692677674
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 50 mm |
| Light colour | Green, 523 nm |
| Light design | Directed |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 36 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 50 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-922 | Polarizer 14x50, linear | for LxL14x50, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, blue, directed, lf-size: 14 mm x 75 mm, static/switchable, external
Order number:
1-34-609
EAN:
4251692677032
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 75 mm |
| Light colour | Blau, 470 nm |
| Light design | Directed |
| Irradiance | 104 W/m² |
| Illumination | 8000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 43 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 75 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-923 | Polarizer 14x75, linear | for LxL14x75 ,400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, white, directed, lf-size: 14 mm x 75 mm, static/switchable, external
Order number:
1-34-610
EAN:
4251692677049
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 75 mm |
| Light colour | White, 5700 K |
| Light design | Directed |
| Irradiance | 18 W/m² |
| Illumination | 6000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 43 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 75 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-923 | Polarizer 14x75, linear | for LxL14x75 ,400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, IR850, directed, lf-size: 14 mm x 75 mm, static/switchable, external
Order number:
1-34-611
EAN:
4251692677056
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 75 mm |
| Light colour | Infrared, 850 nm |
| Light design | Directed |
| Irradiance | 46 W/m² |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 46 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 75 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-923 | Polarizer 14x75, linear | for LxL14x75 ,400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, red, directed, lf-size: 14 mm x 75 mm, static/switchable, external
Order number:
1-34-608
EAN:
4251692677025
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 75 mm |
| Light colour | Red, 633 nm |
| Light design | Directed |
| Irradiance | 96 W/m² |
| Illumination | 12000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 43 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 75 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-923 | Polarizer 14x75, linear | for LxL14x75 ,400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, green, directed, lf-size: 14 mm x 75 mm, static/switchable, external
Order number:
1-34-710
EAN:
4251692677681
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 75 mm |
| Light colour | Green, 523 nm |
| Light design | Directed |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 43 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 75 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-923 | Polarizer 14x75, linear | for LxL14x75 ,400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, blue, directed, lf-size: 14 mm x 100 mm, static/switchable, external
Order number:
1-34-613
EAN:
4251692677070
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 100 mm |
| Light colour | Blau, 470 nm |
| Light design | Directed |
| Irradiance | 104 W/m² |
| Illumination | 8000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 50 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 100 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-924 | Polarizer 14x100, linear | for LxL14x100, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, white, directed, lf-size: 14 mm x 100 mm, static/switchable, external
Order number:
1-34-614
EAN:
4251692677087
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 100 mm |
| Light colour | White, 5700 K |
| Light design | Directed |
| Irradiance | 18 W/m² |
| Illumination | 6000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 50 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 100 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-924 | Polarizer 14x100, linear | for LxL14x100, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, IR850, directed, lf-size: 14 mm x 100 mm, static/switchable, external
Order number:
1-34-615
EAN:
4251692677094
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 100 mm |
| Light colour | Infrared, 850 nm |
| Light design | Directed |
| Irradiance | 46 W/m² |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 50 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 100 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-924 | Polarizer 14x100, linear | for LxL14x100, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Title:
Short description:
bar light, red, directed, lf-size: 14 mm x 100 mm, static/switchable, external
Order number:
1-34-612
EAN:
4251692677063
Downloads:
Characteristics
- LED bar light with direct illumination
- homogeneous illumination
- lighting controller external
- continuous or pulsed operation
- brightness pre-set, flash duration corresponds to pulse-length
- connection: M5 plug at lighting controller
- metal casing, optical material: PMMA
- multiple mounting options
- new improved version ("-a")
Technical data
| Luminous field | 14 mm x 100 mm |
| Light colour | Red, 633 nm |
| Light design | Directed |
| Irradiance | 96 W/m² |
| Illumination | 12000 lx |
| Operation voltage | 24 VDC (12 - 30 V) |
| Ambient temperature | -10°C bis +45°C |
| Degree of protection | IP50 |
| Housing material | Aluminium black anodised |
| Weight | 50 g |
| Risk group (DIN EN 62471) | Freie Gruppe |
| Safety class | III, Betrieb an Schutzkleinspannung |
Drawings
Dimensional drawing in mm: length = 100 mm; width = 14 mm
Pin assignments, M5 connector
Accessories
| Order number | Title | Description |
|---|---|---|
| Mounting Systems | ||
| 1-16-827 | Tension clamp LxL14 series | for variable attachment and extension of the LxL14 series, l=25mm, w=24mm |
| Polarisers for 14 mm Bar Lights | ||
| 1-16-924 | Polarizer 14x100, linear | for LxL14x100, 400 - 700 nm, plate thickness 0.2 mm, self-adhesive |
| Connection cable M5-4pin | ||
| 1-11-117 | Cable-M5-4p-1A-straight-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-116 | Cable-M5-4p-1A-straight-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin straight socket to free cable end |
| 1-11-105 | Cable-M5-4p-1A-angled-2m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
| 1-11-104 | Cable-M5-4p-1A-angled-5m | 4x0.14mm², 1A, 60V, PUR, IP67, M5-4pin angled socket to free cable end |
Load more products..
