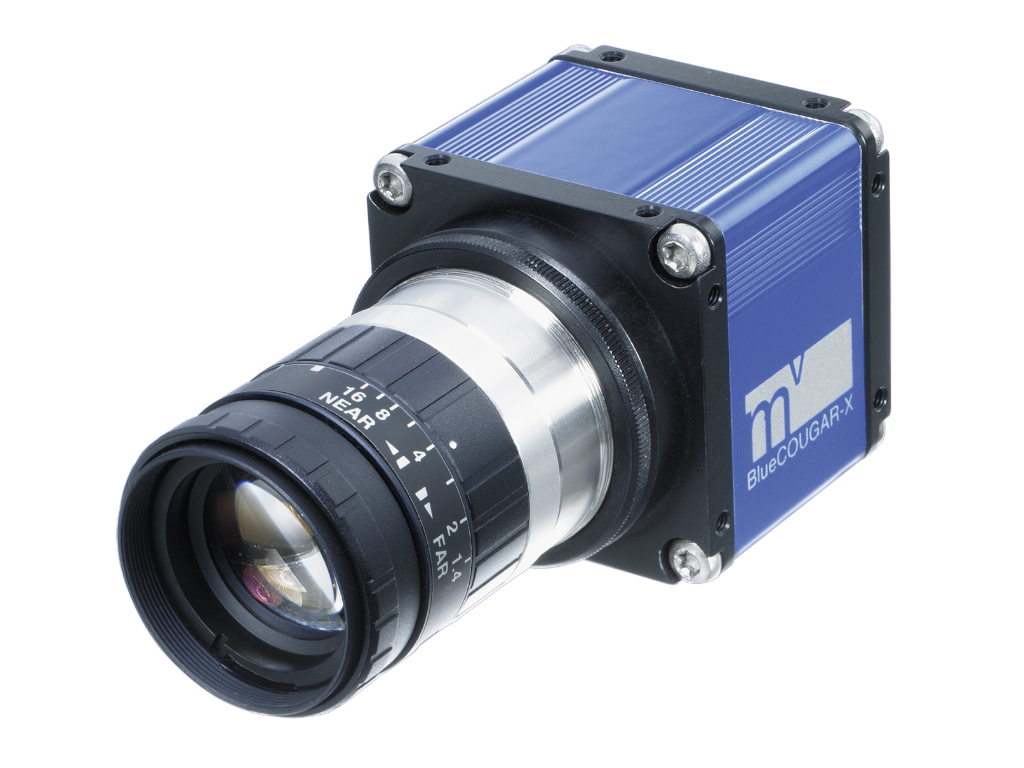

Camera for Multi-Camera Systems - mvBlueCOUGAR-X105G-POE
Characteristics
- compact GigE area scan camera for industrial applications
- 1/2.5" CMOS monochrom sensor with 5 megapixel resolution
- industrial GigE Vision interface with Power over Ethernet
- RJ45 Ethernet connection with screw connector for safe operation
- C-mount lens connection
Technical data
Sensor Data | |
Sensor name | ON Semi MT9P031 |
Chroma | Monochrome |
Sensor technology | CMOS |
Readout method | Rolling Shutter |
Sensorformat | 1/2.5" |
Sensor diagonal | 7.1 mm |
Resolution total | 2592 x 1944 |
Number of pixel | 5.0 MPixel |
Pixel size | 2.2 µm x 2.2 µm |
Frame rate | 14 fps |
Shutter (exposure time) | 10 µs ... 10 s |
Camera Data | |
Family | Matrix Vision - mvBlueCOUGAR-X |
Type | GigE Vision area scan camera |
Interfaces | GigE Vision with PoE opto-decoupled I/Os 2x IN, 4x OUT |
General Data | |
Power requirements | Power over Ethernet (PoE) 12 V - 24 VDC AUX (12-pin Hirose) |
Power consumption | < 6.5 W |
Lens mount | C-Mount |
Dimensions | 39.8 mm x 39.8 mm x 35 mm |
Weight | 110 g |
Operating temperature | 0 °C ... 45 °C |
Accessories for Lighting - mvBlueCOUGAR-X105G-POE
Order number | Title | Description |
---|---|---|
Ethernet Cables | ||
4-44-182 | GigE cable, CAT.6, DC, 3m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
4-44-192 | GigE cable, CAT.6, T, 3m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
4-44-186 | GigE cable, CAT.6, 3m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
4-44-189 | GigE cable, CAT.6, 3m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
4-44-183 | GigE cable, CAT.6, DC, 5m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
4-44-193 | GigE cable, CAT.6, T, 5m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
4-44-187 | GigE cable, CAT.6, 5m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
4-44-190 | GigE cable, CAT.6, 5m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
4-44-184 | GigE cable, CAT.6, DC, 10m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
4-44-194 | GigE cable, CAT.6, T, 10m | RJ45/RJ45, 1 x screw lock, torsion-capable: ± 180°/m, for GigE Vision cameras |
4-44-188 | GigE cable, CAT.6, 10m, 90°d | RJ45/RJ45, 90° angled downwards, in tight spaces, for GigE Vision cameras |
4-44-191 | GigE cable, CAT.6, 10m, 90°u | RJ45/RJ45, 90° angled upwards, in tight spaces, for GigE Vision cameras |
4-44-185 | GigE cable, CAT.6, DC, 25m | RJ45/RJ45, 1 x screw lock, drag chain capable, for GigE Vision cameras |
4-40-120 | GigE cabel, CAT.6a, 3m | RJ45/RJ45, 1200 MHz, grey, for GigE Vision cameras |
PLC-Power Cables | ||
4-44-197 | PLC-power cable, 12p, DC, 5m | HR10A-10P-12S, plug with socket contacts to open cable end, drag chain capable |
4-44-198 | PLC-power cable, 12p, DC, 10m | HR10A-10P-12S, plug with socket contacts to open cable end, drag chain capable |
Power Supply | ||
4-40-245 | Desk. power supply 12 VDC BCS | MV-DC1201 BCS, length 3 m, for mvBlueCOUGAR |
4-40-246 | Desk. power supply 12 VDC BCSX | MV-DC1201 BCSX IO REV2, with I/O on separate cable, for mvBlueCOUGAR |
4-40-244 | Tripodadapter MV-BC-X | tripod adapter, UNC 1/4-20, for mvBlueCOUGAR |
